ElasticSearch Query Report Plugin

License: PRO+ (Professional Edition or higher)
Plugin Type: Post-Index Plugin
Author: Diskover Data, Inc.

Overview

The ElasticSearch Query Report plugin lets you run queries against your Diskover indices and automatically generate reports in CSV or Parquet format. Think of it as a way to extract exactly the data you need from Diskover and package it up for sharing, analysis, or compliance purposes.

Whether you need to send a weekly report of files matching certain criteria, feed data into an analytics platform, or create an audit trail for compliance, this plugin handles the heavy lifting of querying, formatting, and delivering the results.

Why Use This Plugin?

• Automate recurring reports — Set it and forget it with scheduled jobs

• Export data in the format you need — CSV for spreadsheets and human review, Parquet for analytics tools

• Deliver reports automatically — Email CSV reports directly to stakeholders

• Extract exactly what matters — Choose which fields to include, including metadata from other plugins

Use Cases

Compliance Reporting

Need to prove which files exist in certain locations, identify files that haven't been accessed in years, or document files matching specific naming patterns? The ES Query Report plugin makes this straightforward.

Example scenarios:

• Generate a monthly report of all files over 1GB that haven't been modified in 2+ years

• Create an inventory of files with specific extensions in regulated directories

• Document files tagged with compliance-related tags for audit purposes

Scheduled Reporting

Combine this plugin with Diskover's built-in task scheduling to create fully automated reporting workflows. Reports can be generated on any schedule and automatically emailed to the right people.

Example scenarios:

• Daily reports of newly created files in sensitive directories

• Weekly summaries of large files for storage management review

• Monthly compliance snapshots sent directly to your compliance team

Installation

Prerequisites

Python Dependencies

The plugin requires two additional Python packages for data handling:

Installation Steps

1. Ensure the plugin file is in your Diskover plugins directory:

   Linux:

   /opt/diskover/plugins_postindex/diskover_esqueryreport/diskover_esqueryreport.py

   Windows:

   C:\Program Files\Diskover\plugins_postindex\diskover_esqueryreport\diskover_esqueryreport.py

2. Install the required Python dependencies:

   Linux:

   python3 -m pip install -r /opt/diskover/plugins_postindex/diskover_esqueryreport/requirements.txt

   Windows (PowerShell):

   python -m pip install -r "C:\Program Files\Diskover\plugins_postindex\diskover_esqueryreport\requirements.txt"

3. Verify the installation by checking that the dependencies load correctly:

   Linux:

   python3 -c "import pandas; import pyarrow; print('Dependencies OK')"

   Windows (PowerShell):

   python -c "import pandas; import pyarrow; print('Dependencies OK')"

Configuration

Configuration is managed through the Diskover Admin Panel. Navigate to Plugins → Post Index → ES Query Report to access the settings.

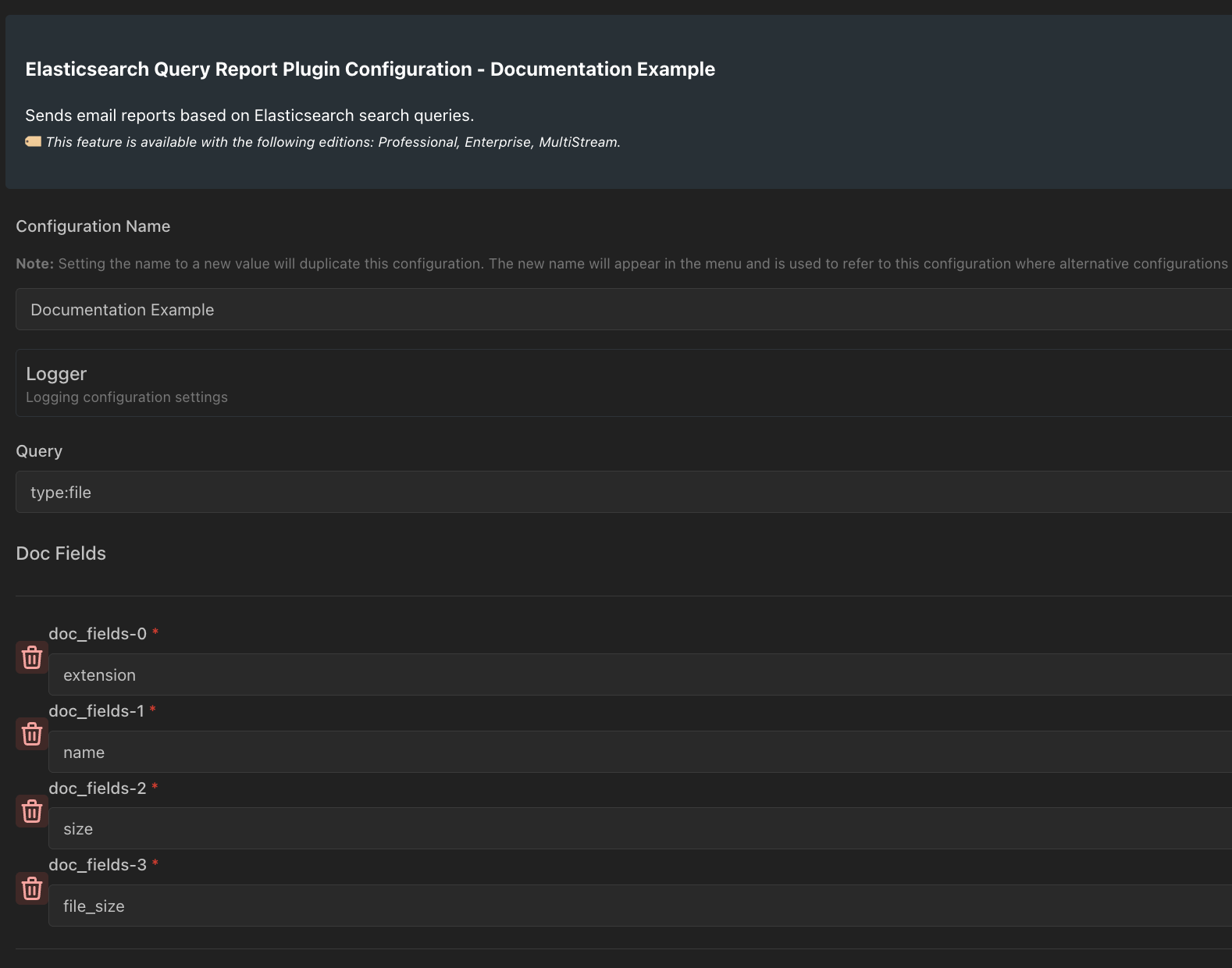

Sample Configuraiton in Diskover Admin:

Here is the beginning of our sample configuration There are many other configuraitons for the ES Query Report plugin - covered in detail below!

Configuration Parameters

Filename Template Tokens

You can use these tokens in your filename patterns to create dynamic, descriptive filenames:

All standard Python strftime codes are supported.

Example Configuration: Compliance Report

This configuration generates a weekly compliance report of large, old files:

query: "size:>1073741824 AND mtime:<now-2y"
doc_fields:
  - name
  - parent_path
  - size
  - mtime
  - atime
  - owner
human_sizes: true
csv_output: true
csv_file: compliance-old-large-files-%Y%m%d.csv
csv_output_dir: /data/reports/
zipcsv: true
send_email: true
email_to:
  - compliance@company.com
  - storage-admin@company.com
email_subject: "Weekly Compliance Report - Large Old Files"
attachcsv: true
parquet_output: false

Working with Nested Fields

If you're using other Diskover plugins that add metadata (like media info or checksums), you can include those fields using dot notation:

doc_fields:
  - name
  - parent_path
  - size
  - mediainfo.duration
  - mediainfo.video_codec
  - hash.md5

Fields that don't exist for a particular file will show as empty in the report.

Running the Plugin

Basic Usage

Run the plugin from the command line, specifying the index to query:

Linux:

python3 /opt/diskover/plugins_postindex/diskover_esqueryreport/diskover_esqueryreport.py diskover-indexname

Windows (PowerShell):

python "C:\Program Files\Diskover\plugins_postindex\diskover_esqueryreport\diskover_esqueryreport.py" diskover-indexname

The plugin will use the configuration from Diskover Admin by default.

Command Line Options

Example: Ad-Hoc Compliance Query

Run a one-time query to find all PDF files larger than 100MB and email the results:

Linux:

python3 /opt/diskover/plugins_postindex/diskover_esqueryreport/diskover_esqueryreport.py \
  -q "extension:pdf AND size:>104857600" \
  -e compliance@company.com \
  -s "Ad-Hoc Report: Large PDF Files" \
  diskover-archive-2024

Windows (PowerShell):

python "C:\Program Files\Diskover\plugins_postindex\diskover_esqueryreport\diskover_esqueryreport.py" `
  -q "extension:pdf AND size:>104857600" `
  -e compliance@company.com `
  -s "Ad-Hoc Report: Large PDF Files" `
  diskover-archive-2024

Example: Using the Latest Index

When you want to always query the most recent index for a particular storage path:

Linux:

python3 /opt/diskover/plugins_postindex/diskover_esqueryreport/diskover_esqueryreport.py \
  -l /mnt/storage/archive \
  -c compliance_config

Windows (PowerShell):

python "C:\Program Files\Diskover\plugins_postindex\diskover_esqueryreport\diskover_esqueryreport.py" `
  -l "D:\storage\archive" `
  -c compliance_config

Setting Up Scheduled Reports

To run reports automatically on a schedule, use Diskover's built-in task scheduling features rather than configuring local cron jobs or Task Scheduler.

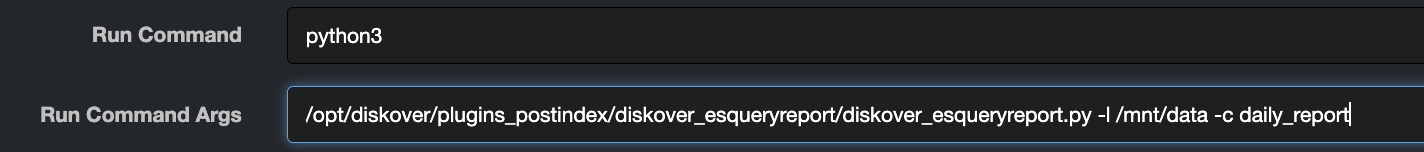

Option 1: Custom Task

Create a Custom Task in Diskover Admin to run the ES Query Report plugin on a defined schedule.

1. Navigate to Task Panel → Custom Tasks in Diskover Admin

2. Create a new Custom Task with the following command:

   Linux:

   python3 /opt/diskover/plugins_postindex/diskover_esqueryreport/diskover_esqueryreport.py -l /mnt/data -c daily_report

   Windows:

   python "C:\Program Files\Diskover\plugins_postindex\diskover_esqueryreport\diskover_esqueryreport.py" -l "D:\data" -c daily_report

3. Configure the schedule (daily, weekly, monthly, etc.)

4. Save and enable the task

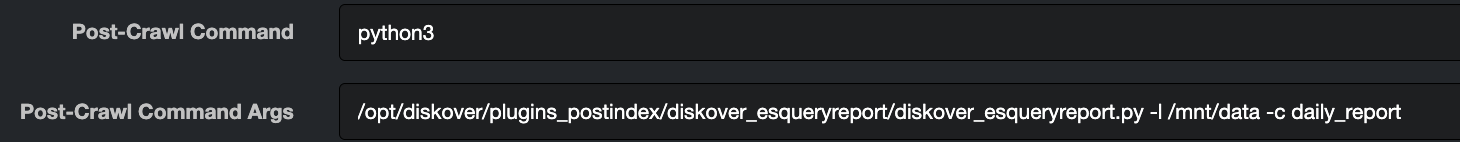

Option 2: Post-Crawl Command (Index Task)

Run the ES Query Report automatically after an index completes by adding it as a Post-Crawl Command to your Index Task.

1. Navigate to Task Panel → Index Tasks in Diskover Admin

2. Edit the Index Task you want to trigger the report from

3. Save the Index Task

Reviewing the Output

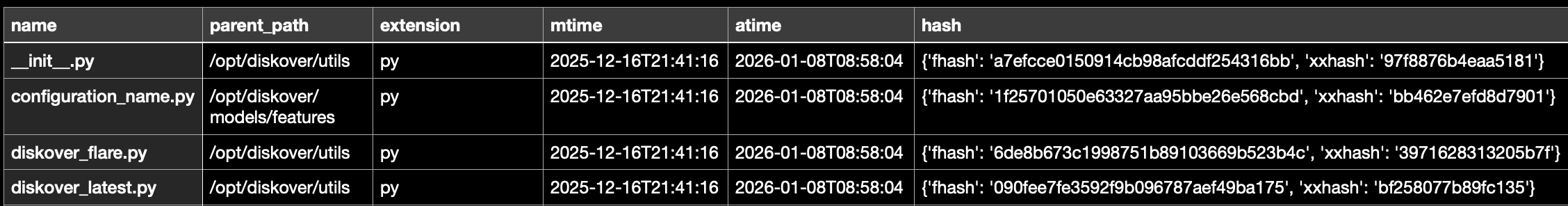

CSV Output

CSV files are human-readable and can be opened in any spreadsheet application like Excel, Google Sheets, or LibreOffice Calc.

What to expect:

• First row contains column headers matching your doc_fields configuration

• Size fields show human-readable values (e.g., "1.5 GB") when human_sizes is enabled

• List fields (like tags) are joined with semicolons

• ZIP compression is applied by default to reduce file size

Parquet Output

Parquet files are optimized for analytics tools and maintain raw numeric values for accurate calculations.

Compatible with:

• Apache Spark

• Pandas (Python)

• AWS Athena

• Databricks

• Snowflake

Note: Parquet files cannot be emailed—they're saved to the configured output directory for pickup by your analytics pipeline.

Email Reports

When email is enabled, you'll receive a message containing:

• The query that was executed

• The attached CSV or ZIP file (if attachcsv is enabled)

• A reference to where the file was saved

Verifying Successful Execution

A successful run will show log output similar to:

INFO - Starting diskover es query report ...
INFO - es query: size:>1073741824 AND mtime:<now-2y
INFO - found 247 matching docs
INFO - Finished searching all index docs matching query
INFO - Saving report to /data/reports/compliance-old-large-files-20240115.csv
INFO - Compressing report /data/reports/compliance-old-large-files-20240115.csv ...
INFO - Emailing report to compliance@company.com, storage-admin@company.com

Troubleshooting

No Documents Found

Symptom: Log shows "No docs found matching query!"

What to check:

1. Test your query in the Diskover web interface first to verify it returns results

2. Confirm the index name is correct and the index contains data

3. Verify your query syntax—the plugin uses Lucene query string syntax, not Elasticsearch DSL

Quick test:

curl -s "localhost:9200/diskover-myindex/_count" | jq '.count'

Parquet Export Fails

Symptom: Error about missing pandas or pyarrow

Solution: Install the required dependencies:

Linux:

python3 -m pip install -r /opt/diskover/plugins_postindex/diskover_esqueryreport/requirements.txt

Windows (PowerShell):

python -m pip install -r "C:\Program Files\Diskover\plugins_postindex\diskover_esqueryreport\requirements.txt"

Verify installation:

Linux:

python3 -c "import pandas; import pyarrow; print('OK')"

Windows (PowerShell):

python -c "import pandas; import pyarrow; print('OK')"

CSV File Not Created

Symptom: No CSV file appears in the output directory

What to check:

1. Verify the output directory exists and is writable by the diskover user

2. Check available disk space: df -h /tmp/ (Linux) or check drive properties (Windows)

3. Review the plugin logs for write errors

Email Not Sent

Symptom: CSV is generated but no email arrives

What to check:

1. Verify SMTP settings are configured correctly in Diskover Admin

2. Confirm email_to and email_from are both set

3. Test SMTP connectivity:

   nc -zv smtp.company.com 587

4. Check spam/junk folders for the report email

Nested Fields Return Empty Values

Symptom: Dot-notation fields like mediainfo.duration are empty in the report

What to check:

1. Confirm the source plugin (e.g., mediainfo) ran during indexing

2. Verify the exact field path—field names are case-sensitive

3. Check if the field exists in Elasticsearch:

   curl -s "localhost:9200/diskover-myindex/_search?size=1" | jq '._source.mediainfo'

Need More Data?

• Enable verbose logging with -v or -V flags for more detailed output

• Check the Diskover logs for additional error details:

  • Linux: /var/log/diskover/

  • Windows: C:\Program Files\Diskover\logs\

Quick Reference

Minimum Required Configuration

query: "your-elasticsearch-query-here"
email_to:
  - recipient@company.com
email_from: diskover@company.com

Common Query Examples

Support
