ElasticSearch Field Copier

Overview

The ElasticSearch Field Copier plugin migrates custom field data from one Diskover index to another. This is essential when you need to preserve metadata that was enriched by other plugins, workflows, or manual processes after rebuilding or re-indexing your storage.

When Diskover creates a new index during a scheduled scan, any custom fields that were added to the previous index—such as cost calculations, project codes, or classification data—don't automatically transfer to the new index. The ES Field Copier solves this by copying those field values from your source index to your target index, matching documents by their file path and name.

Use Cases

Preserving Data After Re-Indexing
When you run scheduled re-indexing (weekly, monthly, or after storage changes), any custom metadata added to files since the last index would be lost. ES Field Copier preserves this data by copying fields from the previous index to the newly created one.

Copying Custom Fields from Workflow Processes
If you have external workflows that inject custom fields into your Diskover indices—such as project management integrations, data classification systems, or compliance tagging—ES Field Copier ensures those fields persist across index rebuilds.

Migrating Plugin-Enriched Metadata
After running plugins like Costs, MediaInfo, or custom integrations that add fields to your index, ES Field Copier lets you preserve that enriched metadata when you need to rebuild an index due to mapping changes or optimization.

Field Copier vs. Tag Copier

Diskover offers two plugins for preserving data across indices:

Use ES Field Copier when you need to preserve plugin-generated fields or custom metadata. Use Tag Copier when you only need to preserve tags.

Installation

Prerequisites

Before installing the ES Field Copier plugin, ensure your environment meets these requirements:

The plugin has no external Python dependencies beyond what Diskover already requires.

Installation Steps

The ES Field Copier plugin is included with Diskover Professional Edition and higher. The plugin files are located in the post-index plugins directory:

Linux:

/opt/diskover/plugins_postindex/diskover_esfieldcopier/

Windows:

C:\Program Files\Diskover\plugins_postindex\diskover_esfieldcopier\

To verify the plugin is installed correctly, run the version check:

Linux:

python3 /opt/diskover/plugins_postindex/diskover_esfieldcopier/diskover_esfieldcopier.py --version

Windows:

python "C:\Program Files\Diskover\plugins_postindex\diskover_esfieldcopier\diskover_esfieldcopier.py" --version

You should see output displaying the plugin version number.

Configuration

Configuration is managed through the Diskover Admin Panel. Navigate to Settings > Plugins > Post Index > ES Field Copier to access the configuration options.

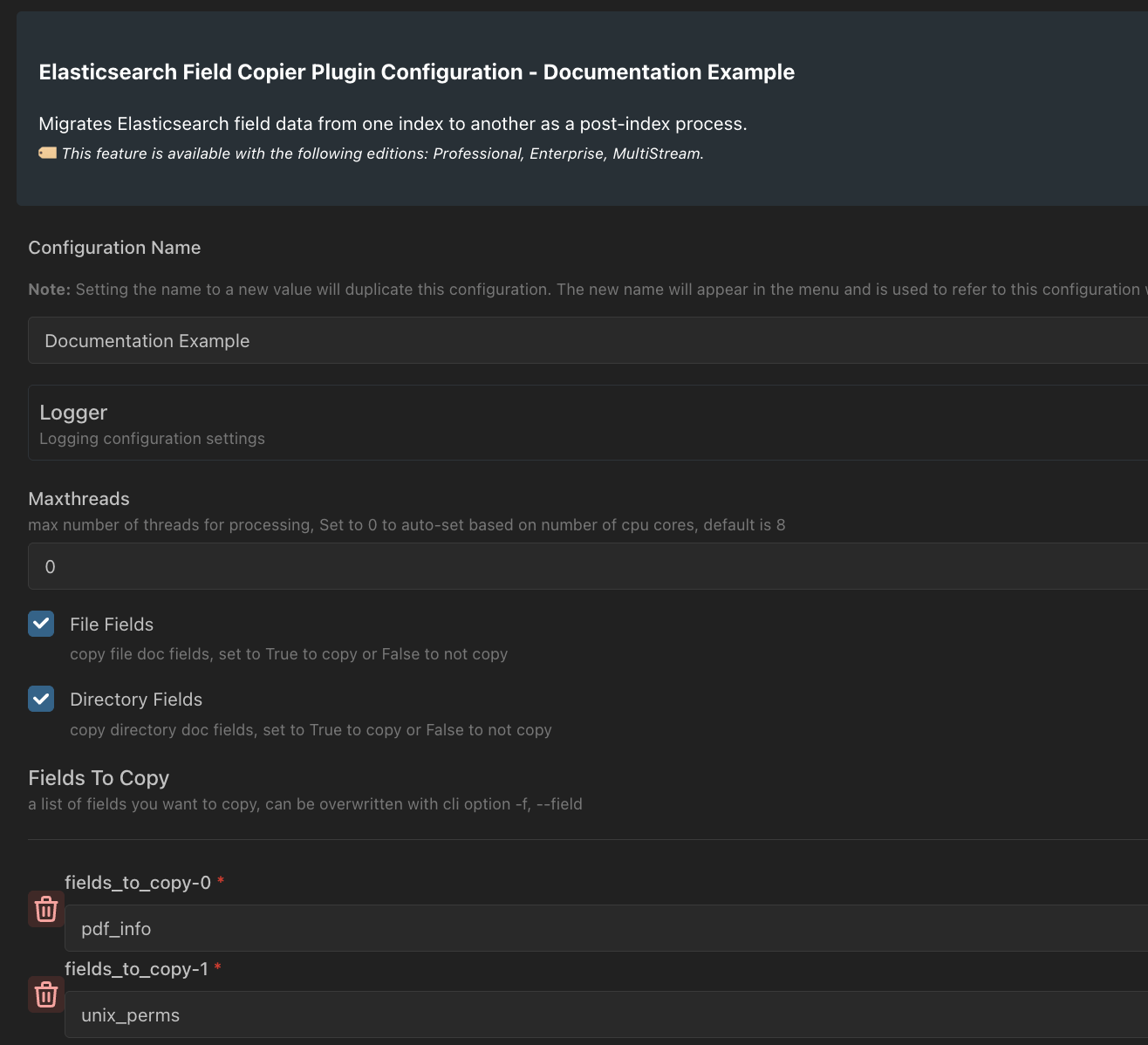

Sample Configuraiton in Diskover Admin:

Here is the beginning of our sample configuration There are many other configuraitons for the ES Field Copier plugin - covered in detail below!

Configuration Parameters

Configuration Examples

Basic Cost Field Migration

This configuration copies cost-related fields that were added by the Costs plugin:

maxthreads: 0
file_fields: true
directory_fields: true
fields_to_copy:
  - cost
  - cost_per_gb
overwrite_existing: true

Project and Department Fields

Copy organizational metadata fields for project tracking:

maxthreads: 0
file_fields: true
directory_fields: true
fields_to_copy:
  - project_code
  - department
  - business_unit
overwrite_existing: true

Files-Only Configuration

When your custom fields only apply to files (not directories), disable directory field copying to improve performance:

maxthreads: 4
file_fields: true
directory_fields: false
fields_to_copy:
  - checksum
  - mediainfo
overwrite_existing: true

Preserve Existing Values (No Overwrite)

When you want to copy fields only if the target document doesn't already have a value, disable overwriting. This is useful when merging data from multiple sources:

maxthreads: 0
file_fields: true
directory_fields: true
fields_to_copy:
  - custom_classification
  - retention_policy
overwrite_existing: false

Understanding the Overwrite Setting

The overwrite_existing parameter determines what happens when the target document already has a value for a field being copied:

Set overwrite_existing to false when you want to:

• Preserve manually-edited values in the target index

• Avoid overwriting values set by another process

• Merge data from multiple sources without losing existing values

Execution

The ES Field Copier can be run manually from the command line or automatically as part of your indexing workflow.

Manual Execution

Basic Syntax

diskover_esfieldcopier.py [OPTIONS] <source_index> <target_index>

Command-Line Options

Examples

Copy a single field between explicitly named indices:

Linux:

python3 /opt/diskover/plugins_postindex/diskover_esfieldcopier/diskover_esfieldcopier.py -f cost diskover-2024.12.01 diskover-2025.01.15

Windows:

python "C:\Program Files\Diskover\plugins_postindex\diskover_esfieldcopier\diskover_esfieldcopier.py" -f cost diskover-2024.12.01 diskover-2025.01.15

Copy multiple fields:

Linux:

python3 /opt/diskover/plugins_postindex/diskover_esfieldcopier/diskover_esfieldcopier.py -f cost -f project_code -f department diskover-old diskover-new

Windows:

python "C:\Program Files\Diskover\plugins_postindex\diskover_esfieldcopier\diskover_esfieldcopier.py" -f cost -f project_code -f department diskover-old diskover-new

Auto-discover the source index:

When using the -a flag, the plugin automatically finds the previous index that shares the same top paths as your target index. You only need to specify the target index:

Linux:

python3 /opt/diskover/plugins_postindex/diskover_esfieldcopier/diskover_esfieldcopier.py -a -f cost diskover-2025.01.15

Windows:

python "C:\Program Files\Diskover\plugins_postindex\diskover_esfieldcopier\diskover_esfieldcopier.py" -a -f cost diskover-2025.01.15

Run with verbose output for troubleshooting:

Linux:

python3 /opt/diskover/plugins_postindex/diskover_esfieldcopier/diskover_esfieldcopier.py -v -f cost -f project_code diskover-old diskover-new

Windows:

python "C:\Program Files\Diskover\plugins_postindex\diskover_esfieldcopier\diskover_esfieldcopier.py" -v -f cost -f project_code diskover-old diskover-new

Automated Execution

For production environments, you'll typically want to run ES Field Copier automatically after each indexing operation. Diskover provides two methods for automated execution.

Method 1: Post-Crawl Command (Recommended)

Configure ES Field Copier to run automatically after an Index Task completes by adding it as a Post-Crawl Command.

In the Diskover Admin Panel, navigate to your Index Task configuration and add the following:

Linux Example:

Windows Example:

The {indexname} token is automatically replaced with the name of the index that was just created.

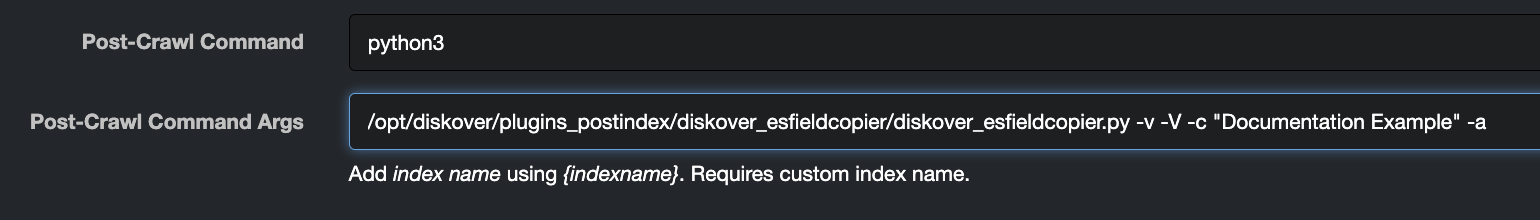

Sample Post-Crawl Command configuraiton for ES Field Copier executing with an Index Task:

In your system ensure to replace the ConfigurationName above with a named configuraiton that you’ve created at Diskover Admin → Plugins → Post-Index → ES Field Copier – If you are not using a custom configuration and you’re just using Default than the -c flag and the ConfigurationName is not required!

Method 2: Custom Task

Create a standalone Custom Task that can be scheduled or triggered manually.

In the Diskover Admin Panel, navigate to Task Panel > Custom Tasks and create a new task:

Linux Example:

Windows Example:

Replace <target_index_name> with your actual target index name, or use the -a flag with index naming patterns that allow auto-discovery.

Sample Custom Task Configuration:

Here we can see the Run Command & args needed for the Custom Task - Note that in this case you cannot use the {indexname} variable as this is not a task that creates an index, so we must use the -l (toppath) CLI option and pass in our top path!

What to Expect During Execution

When the ES Field Copier runs, it performs these steps:

1. Validates indices — Confirms both source and target indices exist

2. Migrates mappings — Checks for missing field mappings in the target index and adds them

3. Queries source index — Searches for documents that have values in the specified fields

4. Processes in batches — Groups documents into batches of 500 for efficient processing

5. Updates target index — Finds matching documents in the target index and copies field values

With verbose logging enabled (-v), you'll see progress messages showing thread activity and document counts.

Reviewing the Output

Successful Execution

When ES Field Copier completes successfully, you'll see a summary message indicating how many documents were updated:

Finished updating 15432 docs in 2m 34s

Log Messages

Verbose Output

With the -v flag, you'll see additional detail about the processing:

Verifying Field Values

After running ES Field Copier, you can verify that fields were copied by searching for documents with those field values in Diskover's search interface or by querying Elasticsearch directly:

curl -s "localhost:9200/<target_index>/_search" -H 'Content-Type: application/json' -d'
{
  "size": 5,
  "query": { "exists": { "field": "cost" } },
  "_source": ["parent_path", "name", "cost"]
}'

Troubleshooting

No Documents Updated

Symptom: The plugin runs successfully but reports 0 documents updated.

Possible Causes and Solutions:

1. Source index has no documents with the specified fields

   • Verify the field name is spelled correctly (field names are case-sensitive)

   • Check that documents in the source index actually have values in those fields

2. Documents don't exist in both indices

   • Files must exist in both the source and target indices with matching paths

   • If files were added or removed between scans, they won't have matching documents

3. Document type mismatch

   • If your fields are only on files but file_fields is disabled, no documents will match

   • Verify your file_fields and directory_fields settings match your data

Index Not Found Error

Symptom: Error message: <index_name> no such index!

Solutions:

• Verify the exact index name spelling (case-sensitive)

• Ensure the target index has completed indexing before running ES Field Copier

• Use the -a flag to let the plugin auto-discover the source index

Auto-Index Find Fails

Symptom: No previous index found! when using the -a flag

Solutions:

• Ensure a previous index exists that scanned the same top-level paths

• If the previous index was deleted, you'll need to manually specify both indices

• Verify the index naming follows a pattern that allows auto-discovery

Fields Not Overwriting

Symptom: Existing field values in the target index are not being updated.

Solutions:

• Verify overwrite_existing is set to true in your configuration

• If using a named configuration (-c), confirm that configuration has the correct setting

Enabling Debug Logging

For detailed troubleshooting, run with the verbose flag:

Linux:

python3 /opt/diskover/plugins_postindex/diskover_esfieldcopier/diskover_esfieldcopier.py -v -f cost diskover-source diskover-target 2>&1 | tee esfieldcopier_debug.log

Windows:

python "C:\Program Files\Diskover\plugins_postindex\diskover_esfieldcopier\diskover_esfieldcopier.py" -v -f cost diskover-source diskover-target > esfieldcopier_debug.log 2>&1

This captures all output to a log file for review.

Support

For additional assistance with the ES Field Copier plugin:

Last Updated: April 2026
