Index Differential

License: PRO+ (Professional Edition or higher)
Plugin Type: Post-Index Plugin
Author: Diskover Data, Inc.

Overview

The Index Differential plugin compares two Diskover indices to identify file differences between them. Whether you're validating a data migration, verifying backup integrity, or tracking changes over time, this plugin helps you quickly identify what's different between two points in time or two storage locations.

The plugin generates detailed CSV reports showing exactly which files differ and how, and can optionally tag documents directly in Diskover so you can search and filter differences using the standard search interface.

Use Cases

Data Migration Validation
After migrating data from one storage system to another, use Index Differential to verify that all files transferred correctly. Compare the source and destination indices using checksum verification to ensure data integrity.

Backup and DR Verification
Compare your production index against a backup or disaster recovery site index to ensure data completeness. This is particularly valuable for validating that critical data is properly replicated and available for recovery scenarios.

Change Detection Over Time
Identify what changed between two scan dates by comparing indices from different time periods. This helps answer questions like "what files were added, removed, or modified in the last week?" and supports compliance auditing or operational monitoring.

Installation

Prerequisites

Installation Steps

The Index Differential plugin is included with Diskover Professional Edition and higher. Verify the plugin is present in your installation:

Linux:

ls -la /opt/diskover/plugins_postindex/diskover_indexdiff/

Windows:

dir "C:\Program Files\Diskover\plugins_postindex\diskover_indexdiff\"

You should see the following files:

• diskover_indexdiff.py — The main plugin script

• README.md — Plugin documentation

Verify Installation

Confirm the plugin is working by checking its version:

Linux:

cd /opt/diskover/plugins_postindex/diskover_indexdiff/
python3 diskover_indexdiff.py --version

Windows:

cd "C:\Program Files\Diskover\plugins_postindex\diskover_indexdiff"
python diskover_indexdiff.py --version

Configuration

Configuration is managed through the Diskover Admin Panel under Plugins > Post Index > Index Diff.

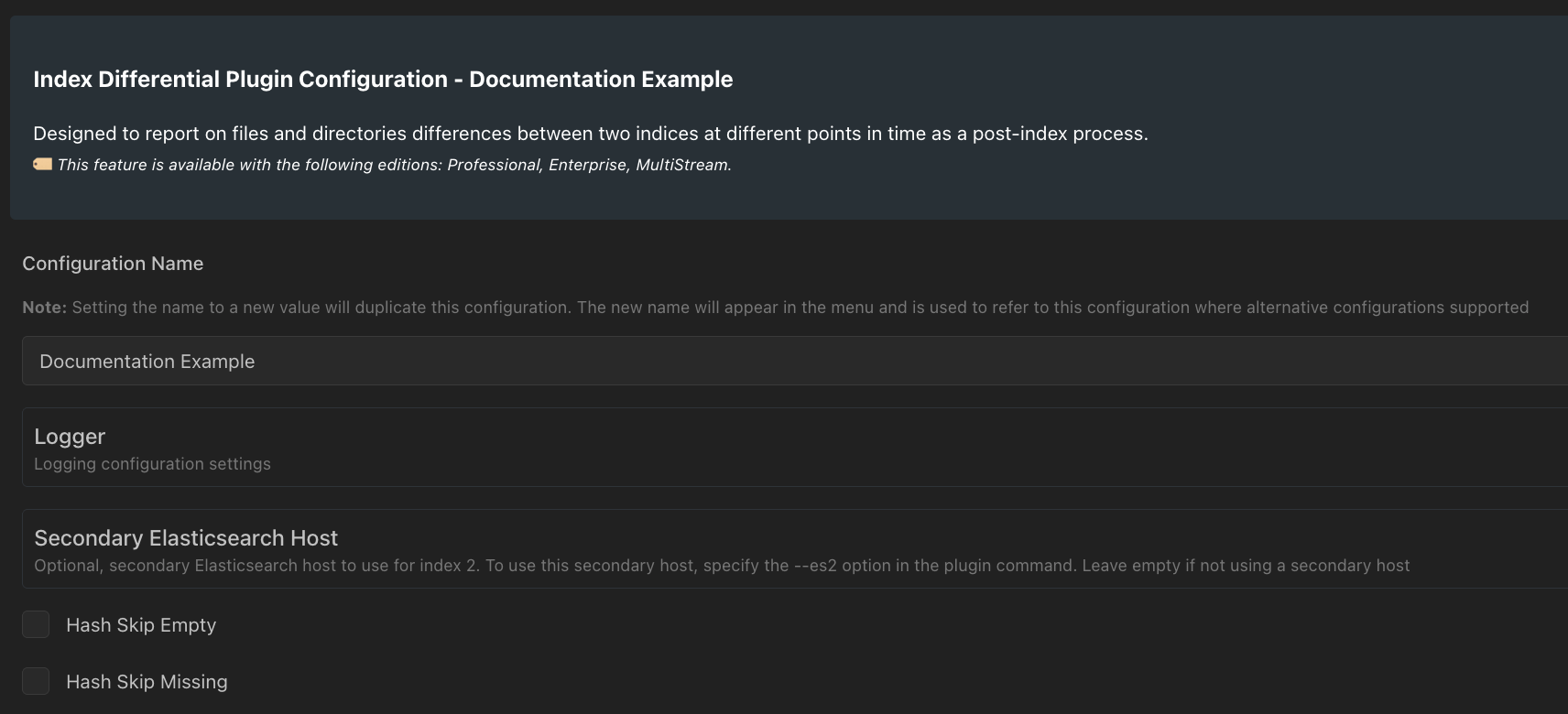

Sample Configuraiton in Diskover Admin:

Here is the beginning of our sample configuration There are many other configuraitons for the Index Diff plugin - covered in detail below!

Configuration Parameters

Secondary Elasticsearch Configuration (Advanced)

For environments that need to compare indices across different Diskover systems (such as comparing a production cluster with a DR site), an optional secondary Elasticsearch connection can be configured. This is an uncommon scenario but available when needed.

When configured, use the --es2 command-line option to direct the plugin to retrieve the second index from the secondary Elasticsearch host.

Execution / Usage Guide

Command-Line Options

Manual Execution Examples

Example 1: Migration Validation with Checksum Verification

After migrating data from /mnt/source to /mnt/dest, verify all files transferred correctly:

Linux:

cd /opt/diskover/plugins_postindex/diskover_indexdiff/
python3 diskover_indexdiff.py \
    -i diskover-source-2024.12 \
    -I diskover-dest-2024.12 \
    -d /mnt/source \
    -D /mnt/dest \
    -c md5 \
    -s

Windows:

cd "C:\Program Files\Diskover\plugins_postindex\diskover_indexdiff"
python diskover_indexdiff.py -i diskover-source-2024.12 -I diskover-dest-2024.12 -d D:\source -D E:\dest -c md5 -s

This compares files by path (adjusted for different roots), verifies MD5 checksums match, and checks file sizes.

Example 2: Change Detection Between Scans

Identify what changed between two weekly scans:

Linux:

cd /opt/diskover/plugins_postindex/diskover_indexdiff/
python3 diskover_indexdiff.py \
    -i diskover-data-2024.12.01 \
    -I diskover-data-2024.12.08 \
    -d /data/project \
    -s -m \
    --tagindex

Windows:

cd "C:\Program Files\Diskover\plugins_postindex\diskover_indexdiff"
python diskover_indexdiff.py -i diskover-data-2024.12.01 -I diskover-data-2024.12.08 -d D:\data\project -s -m --tagindex

This identifies files that were added, removed, or modified (by size or mtime) between the two scan dates and applies tags to the first index for easy searching.

Example 3: Filtered Comparison

Compare only specific file types:

Linux:

cd /opt/diskover/plugins_postindex/diskover_indexdiff/
python3 diskover_indexdiff.py \
    -i diskover-media-2024 \
    -I diskover-archive-2024 \
    -d /media \
    -q "extension:(mov OR mp4 OR mxf)" \
    -c xxhash \
    --tagindex

Windows:

cd "C:\Program Files\Diskover\plugins_postindex\diskover_indexdiff"
python diskover_indexdiff.py -i diskover-media-2024 -I diskover-archive-2024 -d D:\media -q "extension:(mov OR mp4 OR mxf)" -c xxhash --tagindex

This compares only video files between the two indices using xxhash checksums.

Automated Execution

Index Differential can be scheduled to run automatically using Diskover's built-in task scheduling.

Option 1: Custom Task

Create a Custom Task in the Diskover Admin Panel to run the comparison on a schedule.

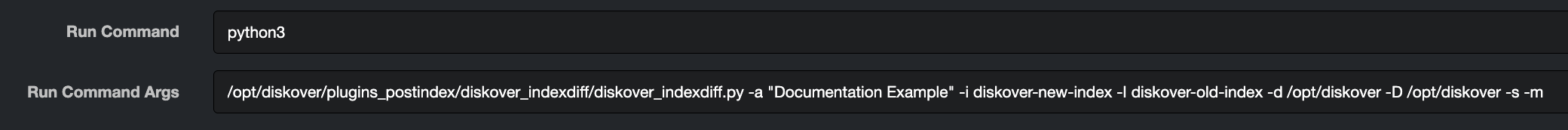

Sample Custom Task Configuration:

Here we can see the Run Command & args needed for the Custom Task - Note that in this case you cannot use the {indexname} variable as this is not a task that creates an index, so we must use the -l (toppath) CLI option and pass in our top path!

Option 2: Post-Crawl Command

Configure Index Differential to run automatically after an index completes by adding it as a Post-Crawl Command in your Index Task configuration.

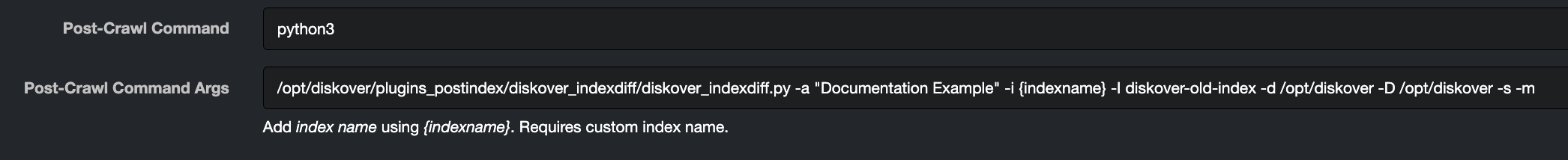

Sample Post-Crawl Command configuraiton for Index Diff executing with an Index Task:

In your system ensure to replace the ConfigurationName above with a named configuraiton that you’ve created at Diskover Admin → Plugins → Post-Index → Index Diff – If you are not using a custom configuration and you’re just using Default than the -a flag and the ConfigurationName is not required!

Linux Example:

Windows Example:

Available Index Task Tokens:

• {indexname} — The name of the index that was just created

Important:

• The Post-Crawl Command field should contain ONLY the executable (e.g., python3, python)

• All script paths, flags, and arguments go in the Post-Crawl Command Args field

• Adjust the -I (second index) and -d (root directory) values to match your comparison requirements

Reviewing the Output

CSV Reports

By default, Index Differential generates a timestamped CSV file containing all identified differences.

Output Location: The CSV files are saved to the directory specified in the csvdir configuration parameter (default: /tmp).

Filename Format: diskover_filediffs_<INDEX1>_<INDEX2>_<TIMESTAMP>.csv

Example: diskover_filediffs_diskover-prod-2024.12_diskover-backup-2024.12_2024_12_15_14_30_00.csv

CSV Columns

Understanding Difference Markers

Successful Execution

A successful run will display output similar to:

INFO: Starting diskover indexdiff ...
INFO: Searching for all file docs in diskover-prod-2024.12 for path /data...
INFO: Found 150000 file docs in diskover-prod-2024.12
INFO: Searching for all file docs in diskover-backup-2024.12 for path /data...
INFO: Found 149985 file docs in diskover-backup-2024.12
<  /data/projects/new_file.txt,1024,2024-12-15T10:30:00+00:00,...
<!=size  /data/reports/quarterly.xlsx,2048,2024-12-14T09:00:00+00:00,...
INFO: done
INFO: creating csv /tmp/diskover_filediffs_diskover-prod-2024.12_diskover-backup-2024.12_2024_12_15_14_30_00.csv...
INFO: done
INFO: all done

Sample CLI execution :

#python3 /opt/diskover/plugins_postindex/diskover_indexdiff/diskover_indexdiff.py -i diskover-new-index -I diskover-old-index -d /opt/diskover -D /opt/diskover -s -m

2026-04-09 23:08:37,590 - diskover.plugin.indexdiff - INFO - Starting diskover indexdiff ...
2026-04-09 23:08:37,590 - diskover.plugin.indexdiff - INFO - Using alternate configuration: Documentation Example
2026-04-09 23:08:37,590 - diskover.plugin.indexdiff - INFO - Starting diskover indexdiff ...
2026-04-09 23:08:37,592 - diskover.plugin.indexdiff - INFO - getting files from es...
2026-04-09 23:08:37,593 - diskover.plugin.indexdiff - INFO - Searching for all file docs in diskover-new-index for path /opt/diskover...
2026-04-09 23:08:37,594 - diskover.plugin.indexdiff - INFO - Searching for all file docs in diskover-old-index for path /opt/diskover...
2026-04-09 23:08:37,716 - diskover.plugin.indexdiff - INFO - Found 1134 file docs in diskover-new-index
2026-04-09 23:08:37,726 - diskover.plugin.indexdiff - INFO - Found 1076 file docs in diskover-old-index
..... (diff list of files)
2026-04-09 23:08:37,740 - diskover.plugin.indexdiff - INFO - done
2026-04-09 23:08:37,741 - diskover.plugin.indexdiff - INFO - creating csv /tmp/diskover_filediffs_diskover-new-index_diskover-old-index_2026_04_09_23_08_37.csv...
2026-04-09 23:08:37,741 - diskover.plugin.indexdiff - INFO - done
2026-04-09 23:08:37,741 - diskover.plugin.indexdiff - INFO - all done

Searching in Diskover

When you run Index Differential with the --tagindex option, the plugin applies descriptive tags to files in the first index. These tags make it easy to search for and filter differences directly in the Diskover web interface.

Tag Patterns

Example Searches

Find all files with any difference:

tags:diff_*

Find files that are new (not in the second index):

tags:diff_newfile_*

Find files with checksum/hash differences:

tags:diff_hash_*

Find files with size differences:

tags:diff_size_*

Find files with modification time differences:

tags:diff_mtime_*

Find differences from a specific comparison (by second index name):

tags:*diskover-backup-2024*

Combine with other search criteria:
Find large files (over 1GB) with hash differences:

tags:diff_hash_* AND size:>1073741824

Find video files with any differences:

tags:diff_* AND extension:(mp4 OR mov OR mxf)

Troubleshooting

Index Not Found Error

Symptom: ERROR: diskover-indexname no such index!

Resolution:

• Verify the index name is spelled correctly (index names are case-sensitive)

• Confirm the index exists in Elasticsearch

• For --es2 comparisons, ensure the secondary host is properly configured and reachable

Hash Comparison Shows No Results

Symptom: Using -c md5 but no hash differences are reported even though files differ.

Resolution:

• Ensure the Checksums plugin was run on both indices before comparison

• Check that hash_skip_empty is set appropriately in the configuration (default: true skips files without hashes)

• Verify the hash mode matches what was used during checksum generation (e.g., md5, sha256, xxhash)

CSV Output Permission Error

Symptom: Permission denied when writing CSV file.

Resolution:

• Ensure the csvdir directory exists and is writable by the user running Diskover

• Check available disk space in the output directory

• Update the csvdir configuration to a writable location

Tags Not Applied to Documents

Symptom: Using --tagindex but no tags appear on documents.

Resolution:

• Verify the plugin reported differences were found in the output

• Check that the first index (-i) is writable

• Refresh the index in Diskover or wait for automatic refresh

• Search for tags using tags:diff_* to confirm

Memory Issues with Large Indices

Symptom: Script runs slowly or encounters memory errors with very large indices.

Resolution:

• Use --esquery to filter the comparison to a subset of files

• For very large indices, use --filelistonly to export file lists and compare offline with --comparecsvs

• Consider comparing specific directories rather than entire index roots
