Windows Attributes

License: PRO+ (Professional Edition or higher)
Plugin Type: Post-Index Plugin
Author: Diskover Data, Inc.

Overview

The Windows Attributes post-index plugin extracts Windows Discretionary Access Control Lists (DACLs) from files and directories and updates the windacls field in an existing Diskover Elasticsearch index. This plugin runs after indexing is complete, making it ideal for enriching existing indices with Windows permission data.

This plugin enables organizations to:

• Add Windows DACL permission data to indices created on non-Windows systems

• Target specific files or directories for DACL collection using Elasticsearch queries

• Perform security audits and compliance verification on previously indexed data

• Support distributed architectures where indexing happens on Linux while Windows security collection happens on a Windows worker

Use Cases

Post-Hoc Security Enrichment

Add DACL information to indices that were created without Windows security data. This is particularly useful when you have existing Diskover indices created by a Linux crawler scanning CIFS/SMB shares that contain file metadata but lack Windows permission information.

Selective DACL Collection

Target specific files or directories for DACL extraction using Elasticsearch queries. For example, you might only need DACL information for sensitive directories like Finance, HR, or Legal—not the entire index. This reduces processing time and focuses security auditing on high-value data.

Distributed Architecture

Separate indexing (on Linux) from Windows security collection (on a Windows worker). This allows you to leverage fast Linux-based crawling while still capturing Windows-specific permission data through a dedicated Windows machine with access to the same file shares.

Security Auditing

Find permission issues such as overly permissive ACLs, orphaned SIDs from deleted accounts, and explicit DENY entries. The plugin enables you to search for files accessible by "Everyone," identify files with Full Control granted to broad groups, and detect other security concerns.

Compliance Verification

Document access controls for regulatory compliance requirements including SOX, HIPAA, PCI-DSS, GDPR, and GxP frameworks. The indexed DACL data allows you to create saved searches, generate reports, and export evidence for auditors.

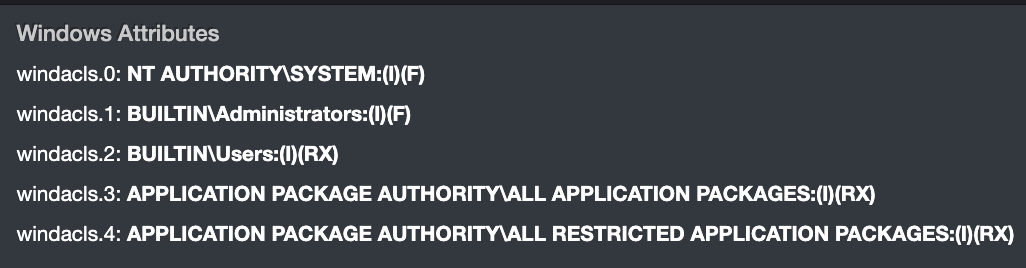

Sample data from a Windows Attributes execution:

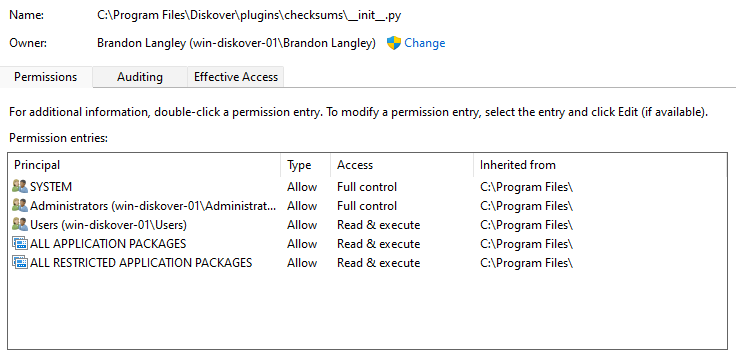

Here we can see the entire list of ACLs returned from the Windows Attributes plugin! Additionally your Windows File Owner / Group are harvested as part of this plugin.

Understanding Windows Security

Unlike Unix systems with their simple owner/group/other permission model, Windows uses Access Control Lists (ACLs) that provide fine-grained security control with unlimited access control entries per file, 14+ distinct permission types, complex inheritance models, and explicit DENY support.

Key Concepts

Security Identifiers (SIDs) are unique identifiers that represent security principals (users, groups, computers) in Windows environments. When an account is deleted or belongs to an untrusted domain, the SID may appear in search results instead of the account name (e.g., S-1-5-21-1234567890-987654321-111222333-1001).

DACLs (Discretionary Access Control Lists) are ordered lists of Access Control Entries (ACEs) that determine who can access an object and what operations they can perform.

ACEs (Access Control Entries) specify a trustee (user/group), an ACE type (Allow, Deny, or Audit), an access mask (permissions), and inheritance flags.

Permission Levels

The plugin formats permissions using standard Windows notation:

When permissions don't match a standard level, granular rights are displayed (e.g., RD, WD, AD, X, DC).

Inheritance Flags

Inheritance flags control how permissions propagate from parent containers to child objects:

ACE String Format

Each entry in the windacls field follows this format:

trustee:(flags)(rights)

For example: ACME\Domain Admins:(I)(OI)(CI)(F) means the Domain Admins group has inherited Full Control that applies to the folder, subfolders, and files.

Installation

Prerequisites

Python Dependencies

The plugin requires the pywin32 Python library to interface with Windows file metadata.

Windows Installation:

python -m pip install pywin32
python -m pywin32_postinstall -install

Verify Installation

Confirm the plugin is installed correctly by checking the version:

Windows:

python "C:\Program Files\Diskover\plugins_postindex\diskover_winattrib\diskover_winattrib.py" --version

Long Path Support

If processing files with paths longer than 260 characters, enable Windows long path support:

1. Open Group Policy Editor (gpedit.msc)

2. Navigate to: Computer Configuration > Administrative Templates > System > Filesystem

3. Enable "Enable Win32 long paths"

4. Restart the computer

Alternatively, set via registry:

Set-ItemProperty -Path "HKLM:\SYSTEM\CurrentControlSet\Control\FileSystem" -Name "LongPathsEnabled" -Value 1

Configuration

Configuration is managed through the Diskover Admin Panel at Plugins > Post Index > Windows Attributes.

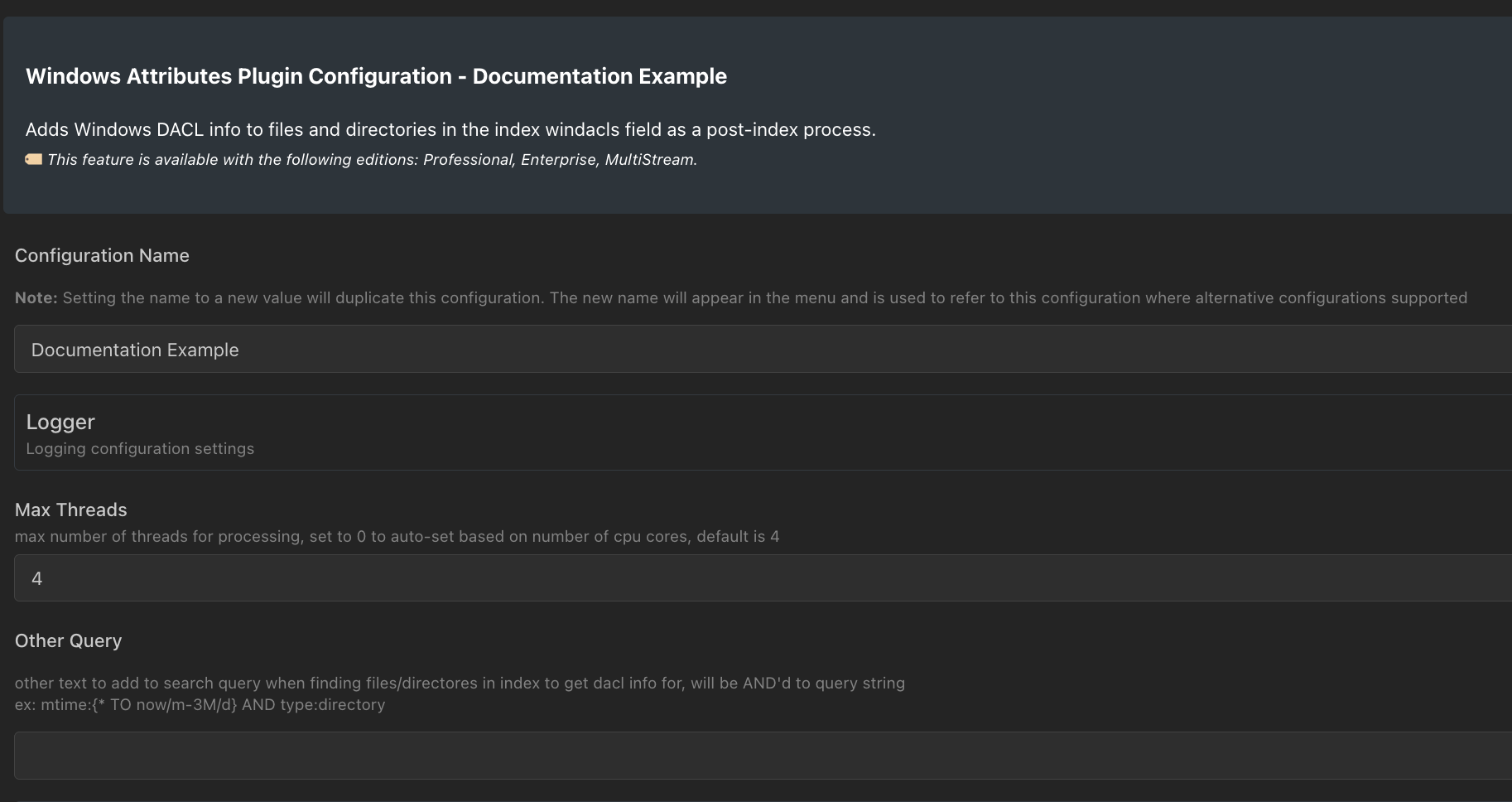

Sample Configuraiton in Diskover Admin:

Here is the beginning of our sample configuration There are many other configuraitons for the Windows Attributes plugin - covered in detail below!

Configuration Parameters

Configuration Examples

Basic Configuration

Collect DACLs for all files with default settings:

{
  "max_threads": 4,
  "other_query": "",
  "replace_paths": {
    "enable": false,
    "from_path": "",
    "to_path": ""
  },
  "inc_domain": true,
  "use_sid": true
}

Cross-Platform Path Translation

For indices created on Linux scanning CIFS shares, configure path translation so the Windows worker can locate files:

{
  "max_threads": 8,
  "other_query": "",
  "replace_paths": {
    "enable": true,
    "from_path": "/mnt/nas/data",
    "to_path": "\\\
as-server\\data"
  },
  "inc_domain": true,
  "use_sid": true
}

Selective DACL Collection

Target only specific directories to reduce processing time:

{
  "max_threads": 4,
  "other_query": "parent_path:*Finance* OR parent_path:*HR* OR parent_path:*Legal*",
  "replace_paths": {
    "enable": false,
    "from_path": "",
    "to_path": ""
  },
  "inc_domain": true,
  "use_sid": true
}

Recent Files Only

Process only files modified in the last 30 days:

{
  "max_threads": 4,
  "other_query": "mtime:{now-30d TO now}",
  "replace_paths": {
    "enable": false,
    "from_path": "",
    "to_path": ""
  },
  "inc_domain": true,
  "use_sid": true
}

High-Performance Configuration

For large indices with many files:

{
  "max_threads": 16,
  "other_query": "",
  "replace_paths": {
    "enable": false,
    "from_path": "",
    "to_path": ""
  },
  "inc_domain": false,
  "use_sid": true
}

Setting inc_domain: false can improve performance by reducing string processing.

Execution

Manual Execution

Run the plugin from the command line to process a specific index.

Windows:

Example:

python "C:\Program Files\Diskover\plugins_postindex\diskover_winattrib\diskover_winattrib.py" diskover-2025.01.15.index

Command-Line Options

Process latest index for a specific top path:

python "C:\Program Files\Diskover\plugins_postindex\diskover_winattrib\diskover_winattrib.py" -l /mnt/nas/data

Use a named configuration:

python "C:\Program Files\Diskover\plugins_postindex\diskover_winattrib\diskover_winattrib.py" -c finance_audit diskover-2025.01.15.index

Enable verbose logging:

python "C:\Program Files\Diskover\plugins_postindex\diskover_winattrib\diskover_winattrib.py" -v diskover-2025.01.15.index

Automated Execution via Custom Task

Schedule the plugin to run automatically using Diskover's Custom Task scheduler.

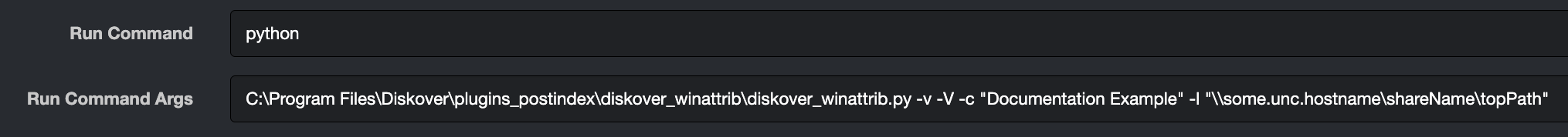

Sample Custom Task Configuration:

Here we can see the Run Command & args needed for the Custom Task - Note that in this case you cannot use the {indexname} variable as this is not a task that creates an index, so we must use the -l (toppath) CLI option and pass in our top path!

Windows Custom Task Configuration:

Automated Execution via Post-Crawl Command

Configure the plugin to run automatically after an index task completes.

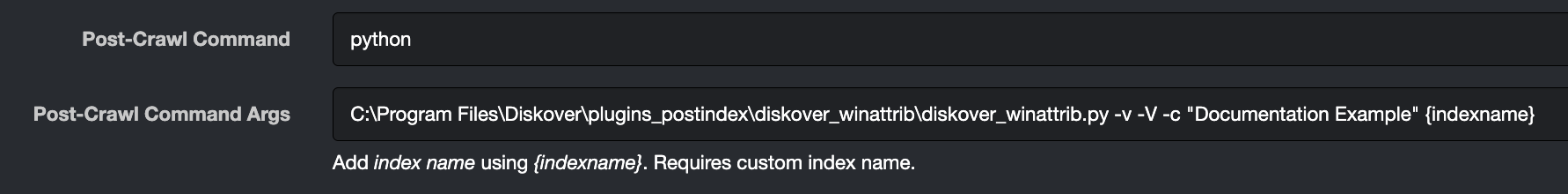

Sample Post-Crawl Command configuraiton for Windows Attributes executing with an Index Task:

In your system ensure to replace the ConfigurationName above with a named configuraiton that you’ve created at Diskover Admin → Plugins → Post-Index → Windows Attributes – If you are not using a custom configuration and you’re just using Default than the -c flag and the ConfigurationName is not required!

Windows Example:

Available Index Task Tokens:

• {indexname} — The name of the index that was just created

Important:

• The Post-Crawl Command field should contain ONLY the executable (e.g., python)

• All script paths, flags, and arguments go in the Post-Crawl Command Args field

• Never reference crontab or local cron/Task Scheduler configurations for automated execution

Expected Output

During execution, the plugin displays progress statistics:

2025-01-15 10:30:15,123 - INFO - Starting diskover windows attributes ...
2025-01-15 10:30:15,234 - INFO - Updating index mappings for windacls field in diskover-2025.01.15.index...
2025-01-15 10:30:15,456 - INFO - Done.
2025-01-15 10:30:15,567 - INFO - Started 4 windows attrib processing threads
2025-01-15 10:30:15,678 - INFO - Searching and queuing docs from index diskover-2025.01.15.index...
2025-01-15 10:30:18,789 - INFO - STATS (docs processed 1500 (15.0%), docs in queue 500, elapsed 0:00:03, perf 500.000 docs/s, memory usage 125 MB)
...
2025-01-15 10:33:15,456 - INFO - *** Elapsed time 0:03:00 ***
2025-01-15 10:33:15,567 - INFO - *** Total files/folders (ES docs): 10000 ***
2025-01-15 10:33:15,678 - INFO - *** Files/folders processed Win attrib OK: 9850 ***
2025-01-15 10:33:15,789 - INFO - *** Files/folders processed Win attrib ERROR: 150 ***

Reviewing the Output

Where to Find Results

After the plugin completes, the windacls field is populated in the Elasticsearch index. You can view this data in:

• Diskover Web UI - Search results display the windacls field when present

• Elasticsearch - Query the index directly to see raw windacls data

• Diskover Reports - Create reports based on windacls search criteria

Understanding the Results

Each document's windacls field contains an array of ACE strings. For example:

{
  "windacls": [
    "ACME\\Domain Admins:(I)(OI)(CI)(F)",
    "ACME\\Finance Team:(I)(OI)(CI)(M)",
    "ACME\\jsmith:(OI)(CI)(F)",
    "NT AUTHORITY\\SYSTEM:(I)(OI)(CI)(F)",
    "BUILTIN\\Administrators:(I)(OI)(CI)(F)"
  ]
}

This shows that Domain Admins and SYSTEM have inherited Full Control, the Finance Team has inherited Modify access, and user jsmith has explicit Full Control on this file.

Identifying Successful Execution

A successful run will show:

• "Files/folders processed Win attrib OK" count close to the total document count

• Minimal "Files/folders processed Win attrib ERROR" count

• No critical errors in the log output

Identifying Problems

Watch for these indicators of issues:

• High error count in final statistics

• "No such file or directory" warnings (path translation may be misconfigured)

• "Access is denied" warnings (service account lacks permissions)

• SIDs appearing instead of account names (deleted accounts or domain connectivity issues)

Searching in Diskover

The plugin creates/updates the windacls field which supports both exact matching and full-text search.

Basic DACL Searches

Find files with DACL data:

windacls:*

Find files without DACL data:

NOT windacls:*

Find files with a specific user in DACL:

windacls:*jsmith*

Find files with domain-prefixed user:

windacls:*ACME\\jsmith*

Security Audit Searches

Find files with explicit DENY entries:

windacls:*DENY*

Find files where Everyone has access:

windacls:*Everyone*

Find files where Everyone has Full Control:

windacls:*Everyone*(F)

Find files where Everyone has write permissions:

windacls:*Everyone*(W) OR windacls:*Everyone*(M) OR windacls:*Everyone*(F)

Find files with orphaned SIDs (deleted accounts):

windacls:*S-1-5-21-*

Find files where Guests have access:

windacls:*Guests*

Inheritance Analysis

Find files with inherited permissions:

windacls:*(I)*

Find files with explicit (non-inherited) permissions:

windacls:* AND NOT windacls:*(I)*

Permission Level Searches

Find files with Full Control granted:

windacls:*(F)

Find files with Modify permissions:

windacls:*(M)

Find files with Read-only access:

windacls:*(R)

Combined Searches

Find large files with Everyone access:

windacls:*Everyone* AND size:>=1073741824

Find executable files with broad permissions:

extension:(exe OR dll OR bat OR ps1) AND windacls:*Everyone*

Find files in Finance directory with DENY entries:

parent_path:*Finance* AND windacls:*DENY*

Find recently modified files with orphaned SIDs:

mtime:[now-7d TO now] AND windacls:*S-1-5-21-*

Find directories with overly permissive settings:

type:directory AND windacls:*Everyone*(F)

Full-Text DACL Searches

Use the analyzed text field for partial matching:

windacls.text:domain admin

Troubleshooting

pywin32 Not Installed

Symptom: Error "No module named 'win32security'" when plugin starts.

Resolution:

python -m pip install pywin32
python -m pywin32_postinstall -install
python -c "import win32security; print('Success')"

Access Denied Errors

Symptom: Log shows "Error getting dacl security info: <path> (Access is denied)"

Resolution:

• Verify the service account running the plugin has Read permissions on the target files

• Check if files are encrypted (EFS) or protected by Windows Resource Protection

• Grant read access: icacls "D:\path\to\directory" /grant "SERVICE_ACCOUNT:(OI)(CI)(R)" /T

SID Resolution Failures

Symptom: DACL entries show SIDs like S-1-5-21-xxx instead of account names.

Common Causes:

• Account has been deleted from Active Directory

• Account is from an untrusted domain

• Domain controller is unreachable

Resolution:

• With use_sid: true (default), SIDs are stored for reference and remain searchable

• Search for orphaned SIDs: windacls:*S-1-5-21-*

• Document orphaned SIDs for security team review

Path Translation Issues

Symptom: Log shows "No such file or directory" for all files.

Resolution:

• Verify replace_paths configuration is correct

• Remember backslashes must be escaped in JSON (\\\\ for \\)

• Test the path translation manually:

  $indexPath = "/mnt/nas/data/Finance/report.xlsx"
  $windowsPath = $indexPath.Replace("/mnt/nas/data", "\\fileserver\share").Replace("/", "\")
  Test-Path $windowsPath

Long Path Problems

Symptom: Files with paths >260 characters fail with errors.

Resolution:

• Enable long path support via Group Policy or registry (see Installation section)

• Restart the computer after enabling

Performance Issues

Symptom: Plugin runs slowly or processes few documents per second.

Resolution:

• Increase thread count in configuration (max_threads: 16)

• Reduce scope with query filtering (other_query)

• Disable domain prefix for faster processing (inc_domain: false)

• Check network latency to file server

Support

• Diskover Documentation

• Diskover Support Portal

• PyWin32 Python Package

Last Updated: April 2026
