Search Page Charts Overview

The Search Page Charts give you a quick snapshot of what’s inside the path you’re currently exploring.

⚠️ Charts update only when navigating the file tree and are hidden during searches.

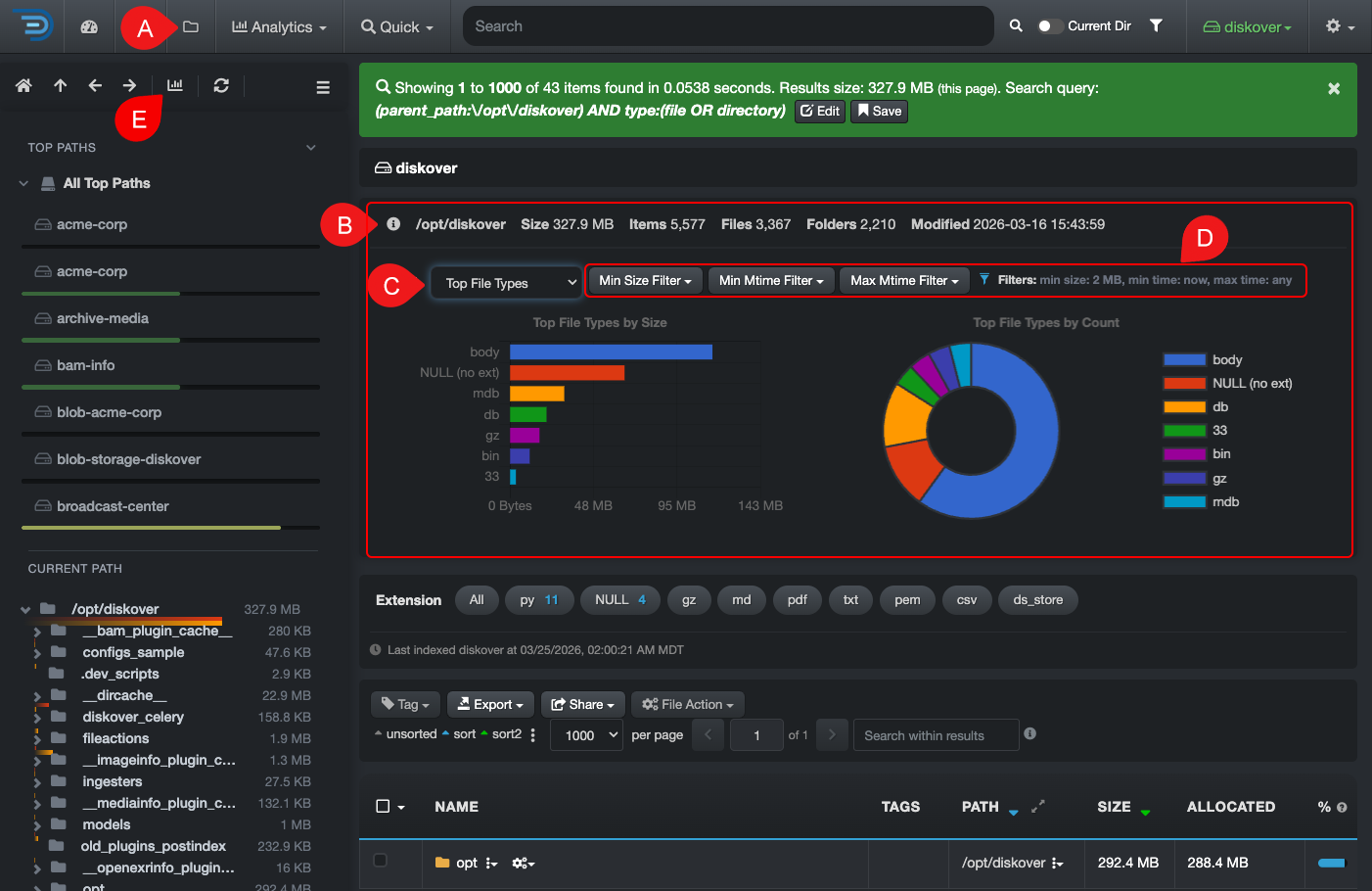

CALLOUT	DESCRIPTION
A	Chart location: The charts appear directly on the search page.
B	Current path summary: Shows an overview of the folder you’re drilling into (or back out of).

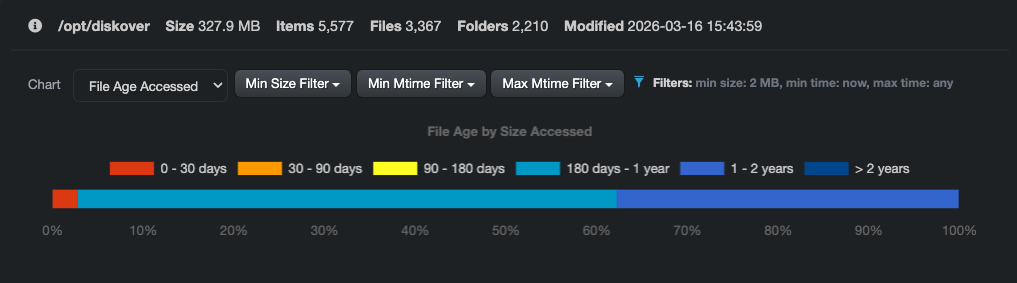

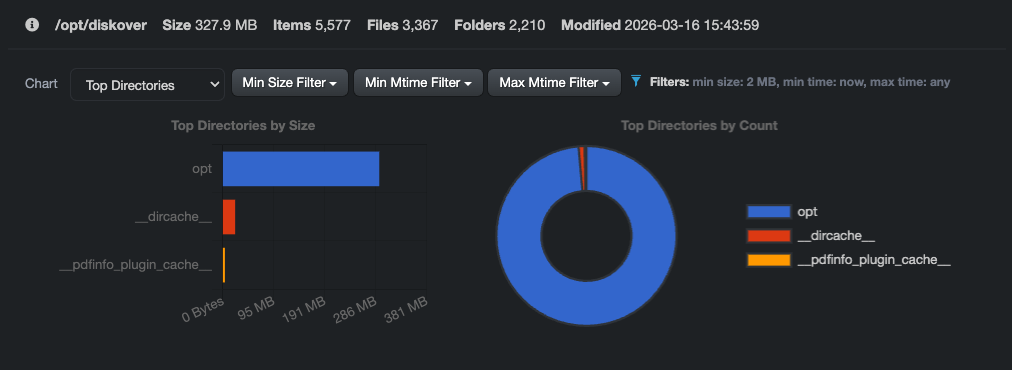

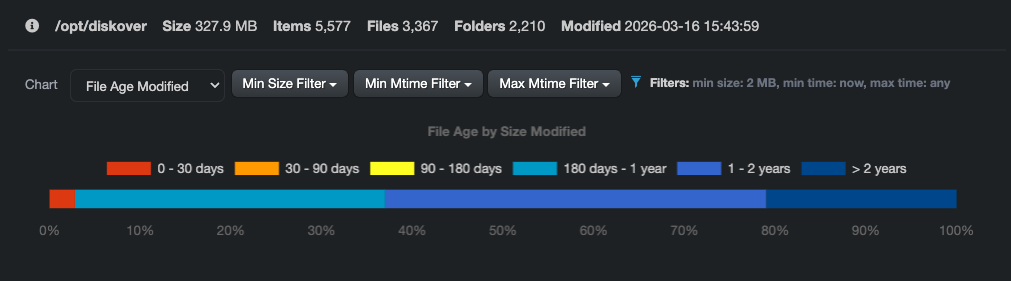

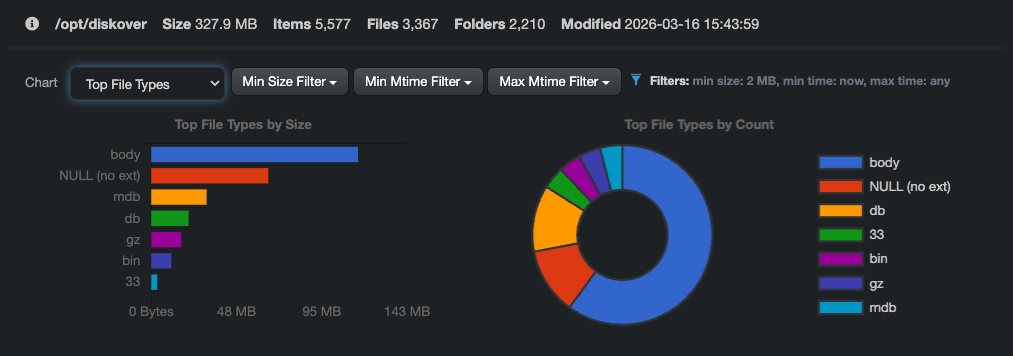

C	Report type selector: Choose which chart/report you want to view. ✏️ The charts are clickable—for example, selecting a bar or a pie slice opens the matching results in the results pane. File Age Modified—Shows how recently files in the current path were modified. File Age Accessed—Shows how recently files were accessed. Top Directories—Highlights directories consuming the most space. Top Files—Highlights file types/extensions consuming the most space.
D	Filters: Apply filters to further customize your results: Min Size Filter: Show only files above a certain size. Min Mtime Filter: Show only files modified after a certain time. Max Mtime Filter: Show only files modified before a certain time. Filters summary (gray text): Displays all active filters. ⚠️ These filters stay active—even if you switch pages—and will affect other analytics until you clear them.
E	Show/Hide charts: Toggle the charts on or off to free up space in the results table. ⚠️ Don’t need them? Hide them! Keeping the charts visible can slow down loading time when drilling through the file tree.
