File Tree v2.5

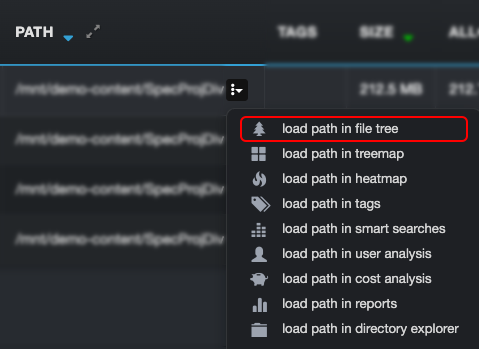

Loads the report for the selected path.

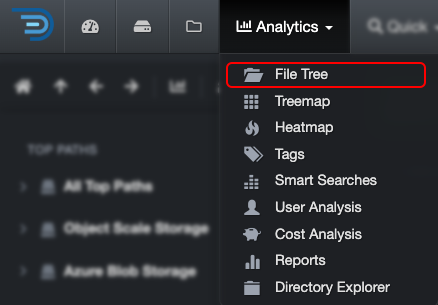

Loads the report starting directly at that path.

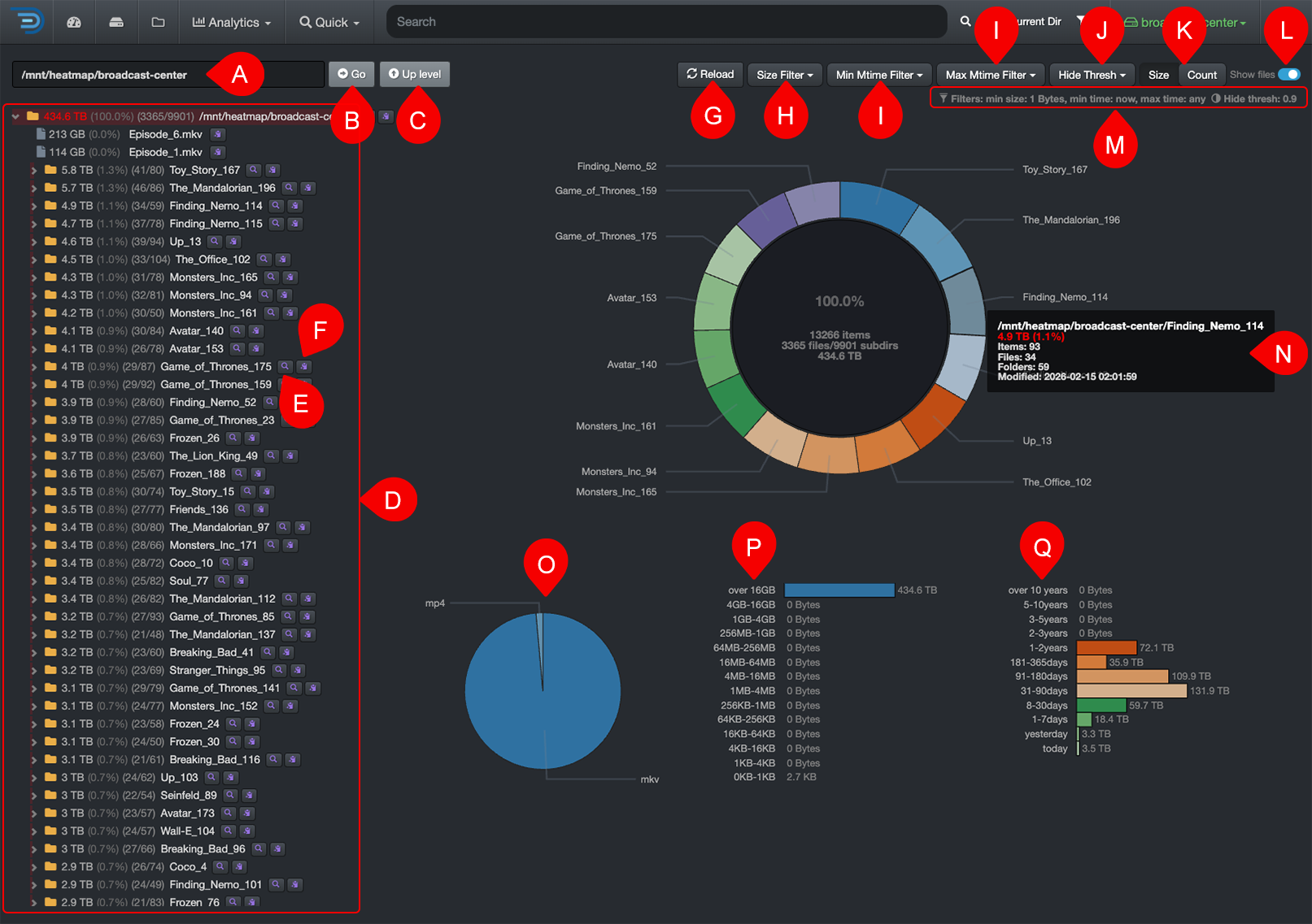

A

Path bar: Enter or paste any path you want to investigate.

B

Go: Acts like pressing the Return/Enter key.

C

Up Level: Moves up one directory at a time until you reach the root of the volume.

D

File Tree Panel: Shows directories in size order by default. If you switch to K Count, the sorting updates accordingly.

✏️ You can drill down from this list—or by clicking slices on the pie chart.

E

Open in search page: Opens the selected path in the search page for further investigation.

F

 Copy path: Copies the path to your clipboard.

G

Reload: Refreshes the data.

H

Size Filter: Show only directories/files above a certain size—this will affect the results displayed in section P.

I

Mtime Filters: Focus on data modified during a specific time range.

• Min Mtime Filter: Show only files modified after a certain time.

• Max Mtime Filter: Show only files modified before a certain time.

J

Hide Thresh: Hide very small percentages to simplify the charts.

K

Size or Count: Switch between analyzing by Size (data volume) or Count (number of items).

L

Show Files: Include files in the results; by default, only directories are shown.

M

Filters: Summary of the filters you might have selected.
⚠️ Filters stay active across different analytics pages until cleared.

N

Directories chart: Shows directory sizes visually—hover a slice for a snapshot of details or click any slice to drill down.

O

File extensions: Shows the most common file extensions in the current path—click a slice to view those files in the Search page.

P

Size chart: Breaks down data by size categories—click bars to open results in the Search page.

Q

Aging chart: Shows how old the data is based on modified time—click bars to open results in the Search page.
