File Tree v2.6

Loads the report for the selected path.

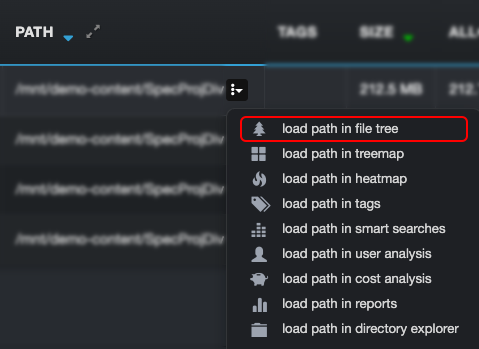

Loads the report starting directly at that path.

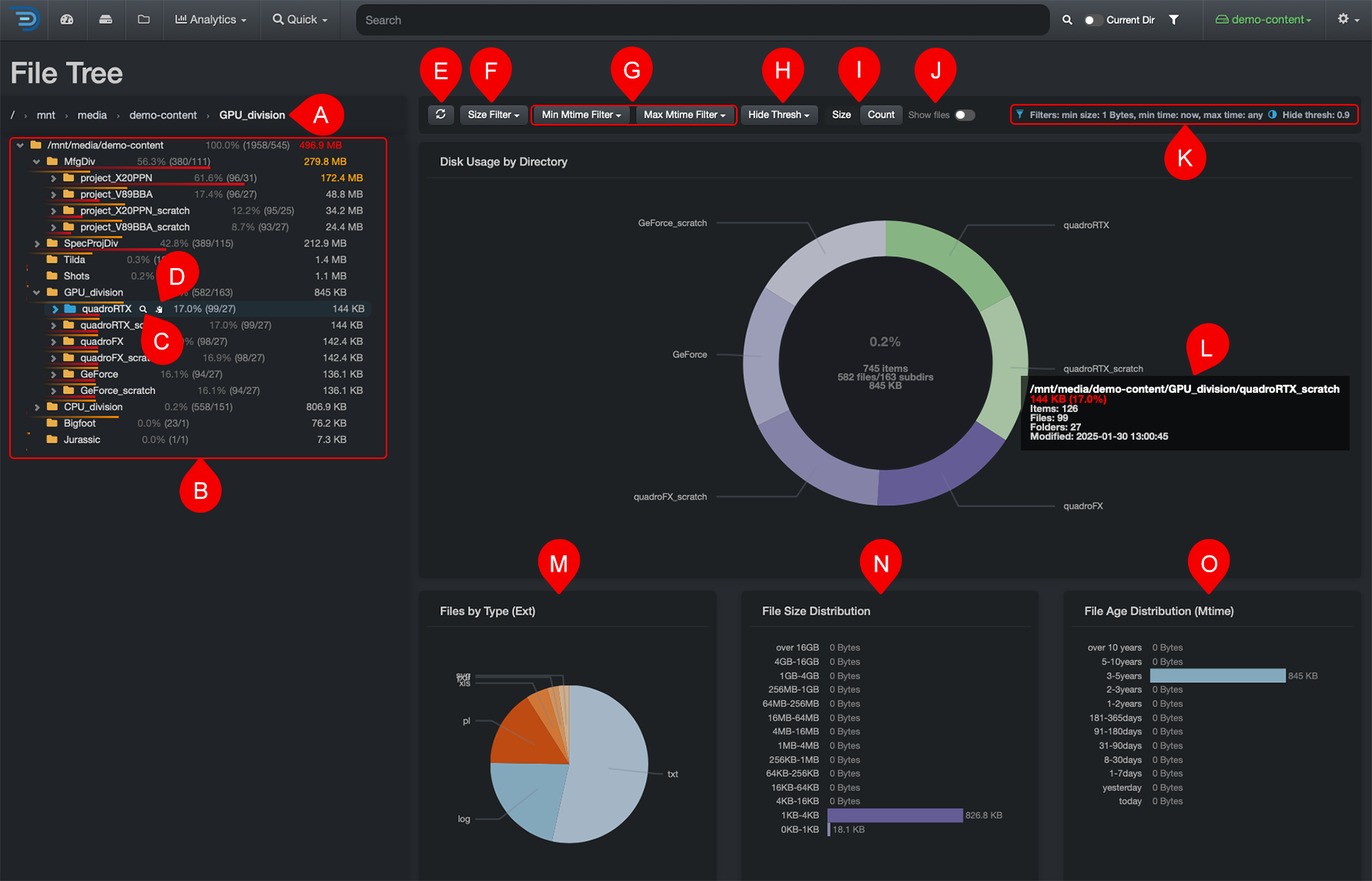

A

Path bar: Enter or paste any path you want to investigate.

B

File Tree Panel: Shows directories in size order by default. If you switch to K Count, the sorting updates accordingly.

✏️ You can drill down from this list—or by clicking slices on the pie chart.

C

Open in search page: Opens the selected path in the search page for further investigation.

D

Copy path: Copies the path to your clipboard.

E

Reload: Refreshes the data.

F

Size Filter: Shows only directories and files above a certain size. This filter affects the File Tree panel and its charts.

G

Mtime Filters: Focus on data modified during a specific time range.

• Min Mtime Filter: Show only files modified after a certain time.

• Max Mtime Filter: Show only files modified before a certain time.

H

Hide Thresh: Hide very small percentages to simplify the charts.

I

Size or Count: Switch between analyzing by Size (data volume) or Count (number of items).

J

Show Files: Include files in the results; by default, only directories are shown.

K

Filters: Summary of the filters you might have selected.
⚠️ Filters stay active across different analytics pages until cleared.

L

Directories chart: Displays directories using the selected Size or Count view. Hover over a slice for details, or click it to drill down.

M

File extensions: Breaks down files by extension using the selected Size or Count view. Click a slice to view the matching files on the Search page..

N

Size chart: Breaks down data by size categories—click bars to open results in the Search page.

O

Aging chart: Shows how old the data is based on modified time—click bars to open results in the Search page.
