Azure Blob Storage

License: PRO (Professional Edition or higher)
Module Type: Alternate Scanner
Author: Diskover Data, Inc.

Overview / Use Cases

The Azure Blob Storage scanner brings your cloud storage into Diskover, giving you full search and discovery capabilities across your Azure blob containers — right alongside your on-premises file systems. Instead of manually browsing the Azure Portal or writing scripts to understand what's in your storage accounts, you can index everything into Diskover and search it just like any other data source.

The scanner translates Azure's flat blob namespace into the familiar hierarchical folder structure you're used to seeing in Diskover. It captures Azure-specific metadata like storage tiers and ETags, so you can build smart workflows around cost optimization and change tracking.

Here are some common scenarios where this scanner shines:

• Cloud Migration Visibility — If you're migrating data into Azure, the scanner lets you index your containers after each migration phase to verify all expected files made it to their destination. You can create periodic snapshots during long-running migrations to track progress and catch stalled transfers early.

• Storage Cost Optimization — Azure offers Hot, Cool, and Archive tiers at different price points. The scanner indexes tier information so you can search for old data sitting in expensive Hot storage, identify large blobs that should be archived, and verify that your Azure lifecycle policies are actually moving data as expected.

• Hybrid Storage Management — When your data lives across on-premises NAS and Azure cloud, you need a single place to search everything. Index both your local file shares and Azure containers into Diskover for unified search and consolidated storage reporting — no more switching between tools to find what you need.

• Compliance and Data Governance — Use Diskover's search and tagging capabilities combined with Azure metadata to track data residency, identify sensitive data stored in cloud containers, and generate audit-ready reports of your cloud storage footprint.

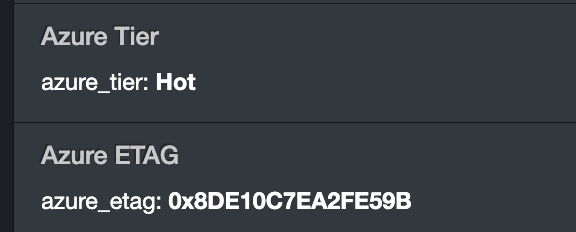

Sample metadata from Azure Blob scan:

With each file / folder in the Azure Blob scan we get the Tier and ETag value for the object!

Understanding Azure Blob Storage

Azure Blob Storage is Microsoft's massively scalable object storage service designed for unstructured data — documents, images, videos, backups, logs, and virtually any file type. If you're new to Azure Blob Storage or want to understand how the scanner maps to Azure concepts, this section will help.

Key Concepts

Storage Tiers

Understanding storage tiers is important because they directly impact your costs. The scanner captures tier information so you can analyze and optimize your spending:

Authentication Methods

The scanner supports two ways to connect to Azure. Choose the one that fits your organization's security posture:

Tip: For production deployments, Azure AD credentials are recommended because they let you assign the minimum required role (Storage Blob Data Reader) and support secret rotation without regenerating storage account keys.

Requirements

System Requirements

Python Dependencies

Azure Prerequisites

Permissions

For connection string authentication:

• Obtain the connection string from Azure Portal > Storage Account > Security + networking > Access Keys

For Azure AD credentials authentication:

1. Create an Azure AD (Entra ID) application registration

2. Create a client secret for the application

3. Grant the application the Storage Blob Data Reader role on the storage account

4. Record the Tenant ID, Client ID, and Client Secret

Installation

Step 1: Install Scanner Package

Linux:

dnf install diskover-scanner-azure

Windows:

The scanner files are included with the Diskover Windows installation. No separate installation step is required.

Install locations:

• Linux: /opt/diskover/scanners/scandir_azure/

• Windows: C:\Program Files\Diskover\scanners\scandir_azure\

Step 2: Install Python Dependencies

Install the required Azure SDK packages:

Linux:

python3 -m pip install azure-storage-blob azure-identity

Windows:

python -m pip install azure-storage-blob azure-identity

Or install specific versions for compatibility:

python3 -m pip install -r /opt/diskover/scanners/scandir_azure/requirements.txt

Step 3: Verify Installation

Confirm the Azure packages are installed correctly:

python3 -c "from azure.storage.blob import BlobServiceClient; print('azure-storage-blob: OK')"
python3 -c "from azure.identity import ClientSecretCredential; print('azure-identity: OK')"

Check installed versions:

python3 -m pip show azure-storage-blob azure-identity | grep -E "^(Name|Version)"

Step 4: Configure Authentication

Choose one of the two authentication methods below. Authentication can be configured via environment variables, TOML configuration files, or the Diskover Admin UI (see the Configuration section for full details).

Option A: Connection String Authentication

Linux:

export AZURE_STORAGE_CONNECTION_STRING="DefaultEndpointsProtocol=https;AccountName=mystorageaccount;AccountKey=abc123...;EndpointSuffix=core.windows.net"

Windows:

$env:AZURE_STORAGE_CONNECTION_STRING = "DefaultEndpointsProtocol=https;AccountName=mystorageaccount;AccountKey=abc123...;EndpointSuffix=core.windows.net"

Option B: Azure AD Credentials Authentication

Linux:

export AZURE_STORAGE_BLOB_URL="https://mystorageaccount.blob.core.windows.net"
export AZURE_TENANT_ID="xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx"
export AZURE_CLIENT_ID="xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx"
export AZURE_CLIENT_SECRET="your-client-secret-value"

Windows:

$env:AZURE_STORAGE_BLOB_URL = "https://mystorageaccount.blob.core.windows.net"
$env:AZURE_TENANT_ID = "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx"
$env:AZURE_CLIENT_ID = "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx"
$env:AZURE_CLIENT_SECRET = "your-client-secret-value"

Step 5: Verify Azure Connectivity

Test connectivity to your Azure storage account:

python3 -c "
from azure.storage.blob import BlobServiceClient
import os
conn_str = os.getenv('AZURE_STORAGE_CONNECTION_STRING')
client = BlobServiceClient.from_connection_string(conn_str)
containers = list(client.list_containers())
print(f'Found {len(containers)} containers')
for c in containers[:5]:
    print(f'  - {c.name}')
"

If you're using Azure AD credentials, adapt the test to use ClientSecretCredential instead.

Sample output of the Azure Conneectivity test :

python3 -c "                                                                                                                                        from azure.storage.blob import BlobServiceClient                                                                                                                           import os
conn_str = os.getenv('AZURE_STORAGE_CONNECTION_STRING')
client = BlobServiceClient.from_connection_string(conn_str)
containers = list(client.list_containers())
print(f'Found {len(containers)} containers')
for c in containers[:5]:
    print(f'  - {c.name}')
"



Found 2 containers
  - blob-acme-corp
  - blob-storage-diskover

Configuration

Configuration is managed through the Diskover Admin UI, environment variables, or TOML configuration files. The scanner loads configuration from multiple sources in this order of precedence:

1. Environment Variables — Highest priority, overrides all other sources

2. TOML Configuration Files — settings.toml and .secrets.toml in the scanner directory

3. Diskover Admin UI — API-sourced configuration when available

Configuration Parameters

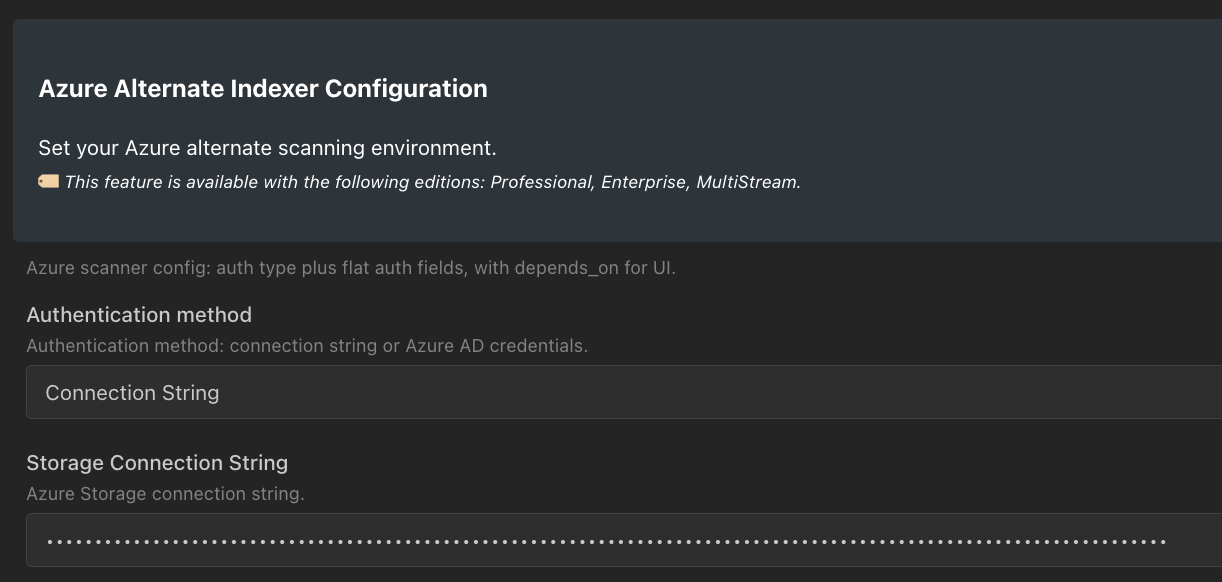

Configuration via Diskover Admin

1. Navigate to Settings > Alternate Scanners > Azure Scanner

2. Select the authentication method (connectionstring or credentials)

3. Fill in the required fields for the chosen authentication method

4. Save the configuration

Environment Variable Overrides

Configuration Examples

Example 1: Connection String via Environment Variables

export AZURE_STORAGE_CONNECTION_STRING="DefaultEndpointsProtocol=https;AccountName=mystorageaccount;AccountKey=abc123def456...;EndpointSuffix=core.windows.net"

cd /opt/diskover
python3 diskover.py --altscanner scandir_azure az://mycontainer

Example 2: Azure AD Credentials via Environment Variables

export AZURE_STORAGE_BLOB_URL="https://mystorageaccount.blob.core.windows.net"
export AZURE_TENANT_ID="12345678-1234-1234-1234-123456789abc"
export AZURE_CLIENT_ID="87654321-4321-4321-4321-cba987654321"
export AZURE_CLIENT_SECRET="your-secret-value-here"

cd /opt/diskover
python3 diskover.py --altscanner scandir_azure az://mycontainer

Example 3: TOML Configuration Files

Create or edit /opt/diskover/scanners/scandir_azure/settings.toml:

[scandir_azure]
auth_method = "credentials"
storage_blob_url = "https://mystorageaccount.blob.core.windows.net"
tenant_id = "12345678-1234-1234-1234-123456789abc"
client_id = "87654321-4321-4321-4321-cba987654321"

Store secrets separately in /opt/diskover/scanners/scandir_azure/.secrets.toml:

[scandir_azure]
client_secret = "your-secret-value-here"

Secure the secrets file:

chmod 600 /opt/diskover/scanners/scandir_azure/.secrets.toml

Usage / Execution

This is a standard alternate scanner that integrates with diskover.py via the --altscanner flag.

Basic Usage

Scan a specific Azure blob container:

Linux:

cd /opt/diskover
python3 diskover.py --altscanner scandir_azure az://mycontainer

Windows:

cd "C:\Program Files\Diskover"
python diskover.py --altscanner scandir_azure az://mycontainer

Scan All Containers

Omit the container name to automatically discover and scan all containers in the storage account:

python3 diskover.py --altscanner scandir_azure az://

This creates separate top paths for each container (e.g., /mycontainer1, /mycontainer2).

Scan a Specific Blob Prefix

Target only a specific "folder" (blob prefix) within a container:

python3 diskover.py --altscanner scandir_azure az://mycontainer/data/2024

With Custom Index Name

Specify a custom Elasticsearch index name:

python3 diskover.py -i diskover-azure-data --altscanner scandir_azure az://mycontainer

Multiple Containers in a Single Index

Scan multiple specific containers into one index:

python3 diskover.py -i diskover-azure-all --altscanner scandir_azure az://container1 az://container2 az://container3

With Verbose Logging

Enable debug logging for troubleshooting:

python3 diskover.py --altscanner scandir_azure --loglevel DEBUG az://mycontainer

With Parallel Worker Threads

Use Diskover's parallel crawling for faster indexing of large containers:

python3 diskover.py --altscanner scandir_azure --threads 8 az://mycontainer

Path Format Reference

Index Path Mapping

Azure blob paths are converted to POSIX-style paths for indexing:

Integration with Index Tasks

When configuring the scanner as part of a Diskover Index Task, use the following settings:

Performance Tips

• Thread count: Increase --threads for containers with many blobs spread across multiple virtual directories. Start with 4–8 threads and tune based on Azure API throttling behavior.

• Prefix targeting: If you only need a subset of a large container, scan specific prefixes rather than the entire container to reduce scan time and API calls.

• Network proximity: Running the scanner on an Azure VM in the same region as your storage account significantly reduces latency and scan time.

• Multiple containers: When scanning many containers, using az:// for auto-discovery is convenient, but scanning individual containers with separate index tasks gives you more control over scheduling and error isolation.

Metadata Fields / Elasticsearch Mappings

The Azure scanner adds two custom metadata fields to every indexed document, capturing Azure-specific information that you can search and report on.

Field Mappings

Elasticsearch Mapping Definition

{
  "mappings": {
    "properties": {
      "azure_etag": {
        "type": "keyword"
      },
      "azure_tier": {
        "type": "keyword"
      }
    }
  }
}

Example Indexed Document (File)

{
  "name": "financial_report_2024.xlsx",
  "path": "/mycontainer/reports/financial/financial_report_2024.xlsx",
  "path_parent": "/mycontainer/reports/financial",
  "extension": "xlsx",
  "size": 524288,
  "size_du": 524288,
  "mtime": "2024-06-15T14:30:00Z",
  "atime": "2024-07-01T09:15:00Z",
  "ctime": "2024-01-10T08:00:00Z",
  "type": "file",
  "azure_etag": "0x8DC1234567890AB",
  "azure_tier": "Hot"
}

Example Indexed Document (Directory)

{
  "name": "financial",
  "path": "/mycontainer/reports/financial",
  "path_parent": "/mycontainer/reports",
  "type": "directory",
  "azure_etag": "",
  "azure_tier": ""
}

Note: Virtual directories (blob prefixes) do not have Azure ETags or tier information, so these fields will be empty for directory entries.

Searching in Diskover

Once Azure containers are indexed, you can use Diskover's standard search syntax to query Azure-specific metadata alongside regular file attributes. Here are practical search examples organized by common workflow.

Basic Tier Searches

Cost Optimization Searches

Change Detection and Versioning

File Type Analysis

Hybrid / Cross-Platform Searches

Combining with Diskover Tags

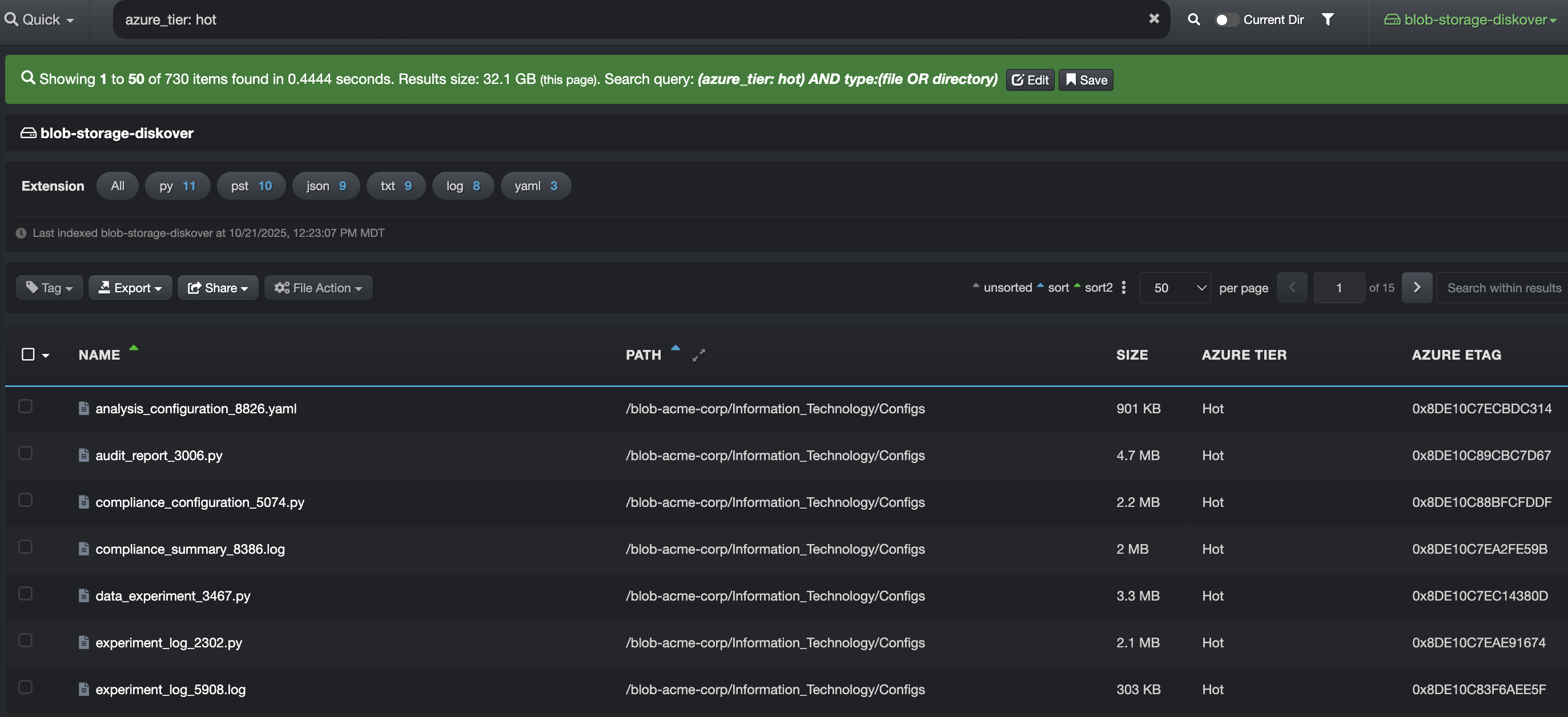

Sample Diskover query output for Azure Tier = “hot”

This shows all content in the Azure Blob stroage that is on the HOT tier along with it’s ETag value!

Troubleshooting

Common Issues

Authentication Failures

Symptom: Scanner fails to start with authentication or authorization errors.

Diagnosis:

1. Verify which auth method is configured:

   Linux:

   echo "Connection String: ${AZURE_STORAGE_CONNECTION_STRING:0:50}..."
   echo "Blob URL: $AZURE_STORAGE_BLOB_URL"
   echo "Tenant ID: $AZURE_TENANT_ID"

   Windows:

   Write-Output "Connection String: $($env:AZURE_STORAGE_CONNECTION_STRING.Substring(0,50))..."
   Write-Output "Blob URL: $env:AZURE_STORAGE_BLOB_URL"
   Write-Output "Tenant ID: $env:AZURE_TENANT_ID"

2. Test connection string validity:

   python3 -c "
   from azure.storage.blob import BlobServiceClient
   import os
   try:
       client = BlobServiceClient.from_connection_string(os.getenv('AZURE_STORAGE_CONNECTION_STRING'))
       print('Connection string valid')
   except Exception as e:
       print(f'Error: {e}')
   "

3. Test Azure AD credentials:

   python3 -c "
   from azure.identity import ClientSecretCredential
   import os
   try:
       cred = ClientSecretCredential(
           os.getenv('AZURE_TENANT_ID'),
           os.getenv('AZURE_CLIENT_ID'),
           os.getenv('AZURE_CLIENT_SECRET')
       )
       token = cred.get_token('https://storage.azure.com/.default')
       print('Credentials valid, token obtained')
   except Exception as e:
       print(f'Error: {e}')
   "

Resolution:

• Verify the connection string has not expired or been regenerated in the Azure Portal

• Ensure the Azure AD application has the Storage Blob Data Reader role

• Check that the client secret has not expired

• Verify tenant ID, client ID, and secret are correctly copied (no trailing whitespace)

Container Not Found

Symptom: Scanner reports the container is not found or access is denied for a specific container.

Diagnosis:

List available containers to confirm the name:

python3 -c "
from azure.storage.blob import BlobServiceClient
import os
client = BlobServiceClient.from_connection_string(os.getenv('AZURE_STORAGE_CONNECTION_STRING'))
for c in client.list_containers():
    print(c.name)
"

Resolution:

• Azure container names are case-sensitive — verify the exact name

• Ensure the container exists in the correct storage account

• For Azure AD auth, verify the role is assigned at the container or account level

Network / Firewall Issues

Symptom: Connection timeouts or network unreachable errors when accessing Azure storage.

Diagnosis:

1. Test basic HTTPS connectivity:

   Linux:

   curl -I "https://mystorageaccount.blob.core.windows.net/"

   Windows:

   Invoke-WebRequest -Uri "https://mystorageaccount.blob.core.windows.net/" -Method Head

2. Check DNS resolution:

   Linux:

   nslookup mystorageaccount.blob.core.windows.net

   Windows:

   Resolve-DnsName mystorageaccount.blob.core.windows.net

3. Test port connectivity:

   Linux:

   nc -zv mystorageaccount.blob.core.windows.net 443

   Windows:

   Test-NetConnection -ComputerName mystorageaccount.blob.core.windows.net -Port 443

Resolution:

• Verify firewall allows outbound HTTPS (port 443) to *.blob.core.windows.net

• If using Azure Private Endpoints, ensure DNS is configured correctly

• Configure a proxy if required by your network: export HTTPS_PROXY="http://proxy.example.com:8080"

• Check Azure Storage firewall settings allow your scanner host's IP address

Permission Denied on Blobs

Symptom: Scanner connects but fails to read certain blobs or list container contents.

Resolution:

• For connection string auth: verify the key has read and list permissions

• For Azure AD auth: assign the Storage Blob Data Reader role at the account or container level

• If using hierarchical namespace (ADLS Gen2), check container-level ACLs

• If using a SAS token, verify it includes read and list permissions

Debug Logging

Enable detailed logging to diagnose any issue:

python3 /opt/diskover/diskover.py --altscanner scandir_azure --loglevel DEBUG az://mycontainer

Log file locations:

• Linux: /var/log/diskover/diskover.log

• Windows: Check Diskover service logs or the configured log location

Support

• Diskover Documentation

• Diskover Support Portal

• Azure Blob Storage Documentation

• azure-storage-blob SDK Documentation

Last Updated: April 2026
